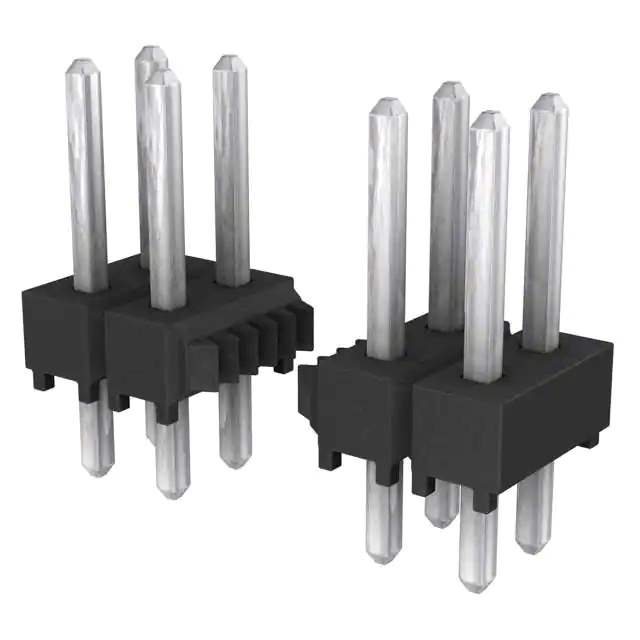

TSW-107-07-T-D Real Image
Same model may have multiple batches, images only for reference.

TSW-107-07-T-D

Part No TSW-107-07-T-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Datasheet
TSW-107-07-T-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSW
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.100" (2.54mm)
Overall Contact Length 0.430" (10.92mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSW-107
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 849069-TSW-107-07-T-D
Ultra Librarian 3D Model Ultra Librarian TSW-107-07-T-D CAD Model

Description

The TSW-107-07-T-D is a header connector from Samtec Inc.

  • Series: TSW
  • Positions: 14
  • Contact Type: Male Pin
  • Contact Load: All Positions Loaded
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Insulation Color: Black
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Tin
  • Application: Board-to-Board or Cable
  • Temperature Range: -55°C to 105°C
  • Contact Length - Post: 0.100" (2.54mm)
  • Contact Length - Overall: 0.430" (10.92mm)
  • Insulation Height: 0.100" (2.54mm)
  • Product Status: Active
  • Package: Bulk
