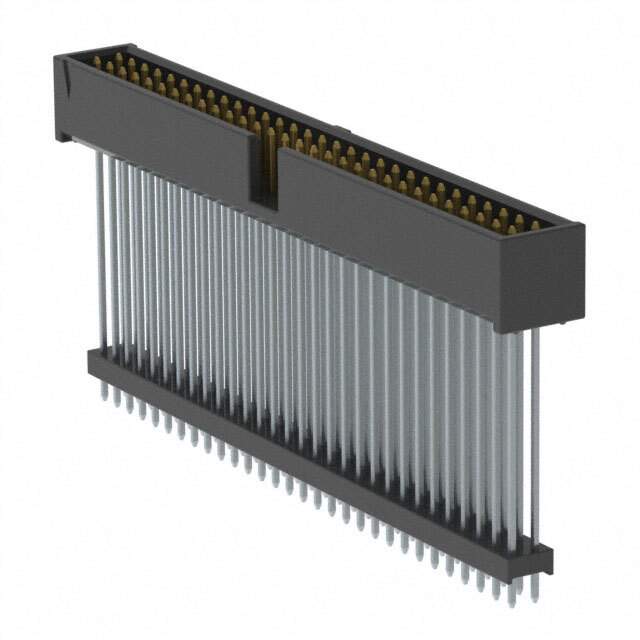

ZSS-130-09-L-D-1340 Real Image
Same model may have multiple batches, images only for reference.

ZSS-130-09-L-D-1340

Part No ZSS-130-09-L-D-1340
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HDR .100" 60POS / Connector Header Through Hole 60 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, ZSS
Package Bulk
Connector Type Header, Elevated
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 60
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.250" (6.35mm)
Contact Length - Post 0.090" (2.29mm)
Overall Contact Length 1.430" (36.32mm)
Insulation Height 1.340" (34.04mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number ZSS-130
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 1054568-ZSS-130-09-L-D-1340
Ultra Librarian 3D Model Ultra Librarian ZSS-130-09-L-D-1340 CAD Model

Description

The ZSS series Flex Stack header connector is a board to board or cable connector type.

  • Positions: 60
  • Feature: keying slot
  • Connector Type: elevated header with male pin contact type
  • All Positions: loaded
  • Rows: two
  • Termination: solder with push-pull fastening type
  • Contact Material: phosphor bronze
  • Contact Finish: gold finish for mating and tin finish for post
  • Insulation Material: polyester, glass filled with black color
  • Shrouding: shrouded - 4 wall
  • Row Spacing: 0.100" (2.54mm)
  • Contact Length for Mating: 0.250" (6.35mm)
  • Contact Length for Post: 0.090" (2.29mm)
  • Overall Contact Length: 1.430" (36.32mm)
  • Insulation Height: 1.340" (34.04mm)
  • Temperature Range: -55°C ~ 125°C
  • Current Rating: 3A
