Same model may have multiple batches, images only for reference.

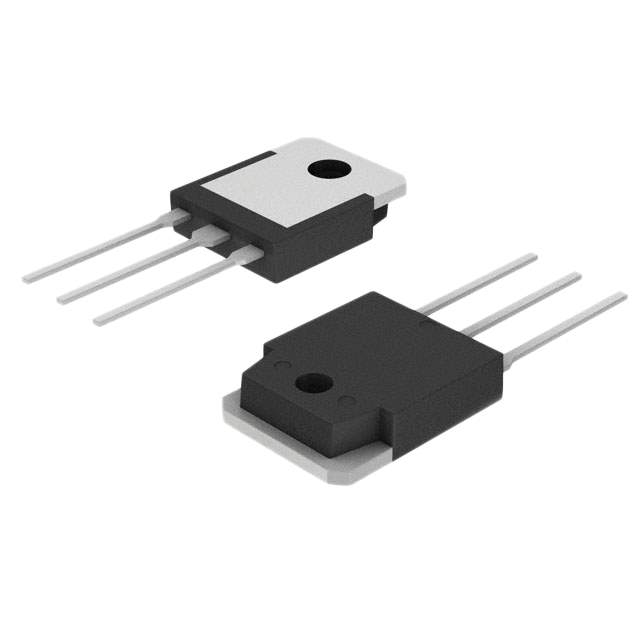

2SC5287 Real Image
Same model may have multiple batches, images only for reference.

2SC5287

Part No 2SC5287
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS NPN 550V 5A TO3P
Datasheet
2SC5287 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Transistor Polarity NPN
Maximum Current Collector 5A
VCEO Maximum Collector-Emitter Breakdown Voltage 550V
Max Vce (sat) 500mV @ 360mA, 1.8A
Collector Cut-off Current(Max) 100μA (ICBO)
Typical Gain (hFE) (Min) 10 @ 1.8A, 4V
Maximum Power Dissipation 80W
Frequency - Transition 6MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-3P
Win Source Part Number 1004453-2SC5287
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SC5287 CAD Model

Description

The Sanken 2SC5287 is a NPN transistor with a maximum collector-emitter breakdown voltage of 550V and a maximum current collector of 5A.

  • Manufacturer: Sanken
  • Transistor Type: NPN
  • Voltage - Collector Emitter Breakdown (Max): 550V
  • Current - Collector (Ic) (Max): 5A
  • Power - Max: 80W
  • Current - Collector Cutoff (Max): 100μA
  • Product Type: Discrete Semiconductor
  • Supply and Demand: Balanced
  • Popularity: Medium
  • Package: TO-3P
