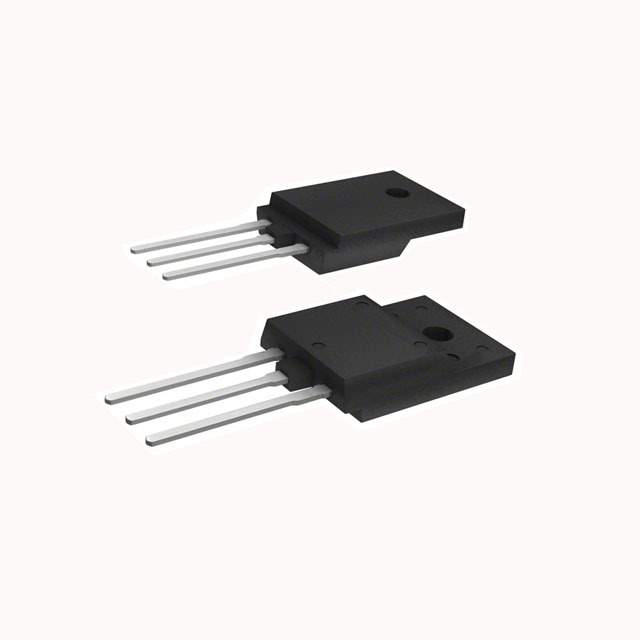

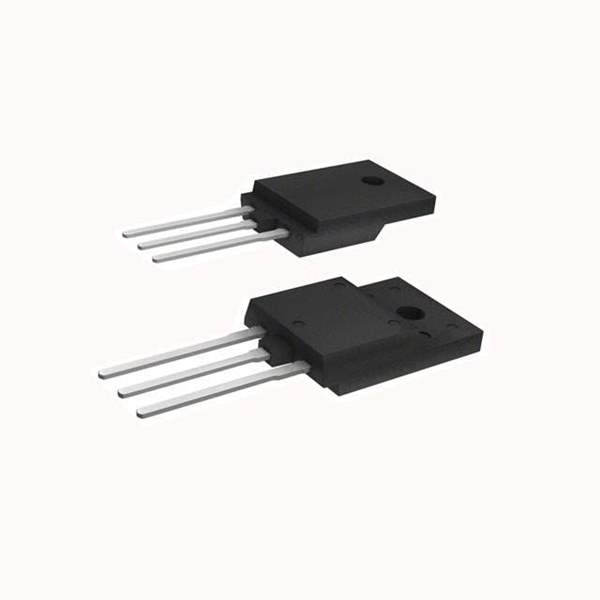

2SD2438 Real Image
Same model may have multiple batches, images only for reference.

2SD2438

Part No 2SD2438
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 150V 8A TO3PF
Datasheet
2SD2438 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 8A
Voltage - Collector Emitter Breakdown (Maximum) 150V
Vce Saturation (Maximum) @ Ib, Ic 2.5V @ 6mA, 6A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 5000 @ 6A, 4V
Power - Max 75W
Frequency - Transition 80MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PF
Win Source Part Number 762884-2SD2438
Family Name 2SD2438
Introduction Date June 18, 2001
ECCN EAR99
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SD2438 CAD Model

Description

The 2SD2438 by Sanken is a high-quality NPN Darlington transistor.

  • Frequency Transition: 80MHz
  • Maximum Power: 75W
  • Current Collector (Ic) Maximum: 8A
  • Voltage Collector Emitter Breakdown (Maximum): 150V
  • Vce Saturation (Maximum) @ Ib, Ic: 2.5V @ 6mA, 6A
  • DC Current Gain (hFE) (Minimum) @ Ic, Vce: 5000 @ 6A, 4V
  • Package: TO-3P-3 Full Pack
  • Mounting: Through Hole
  • Supply and Demand Status: Limited
  • ECCN: EAR99
  • Estimated EOL Date: 2024
