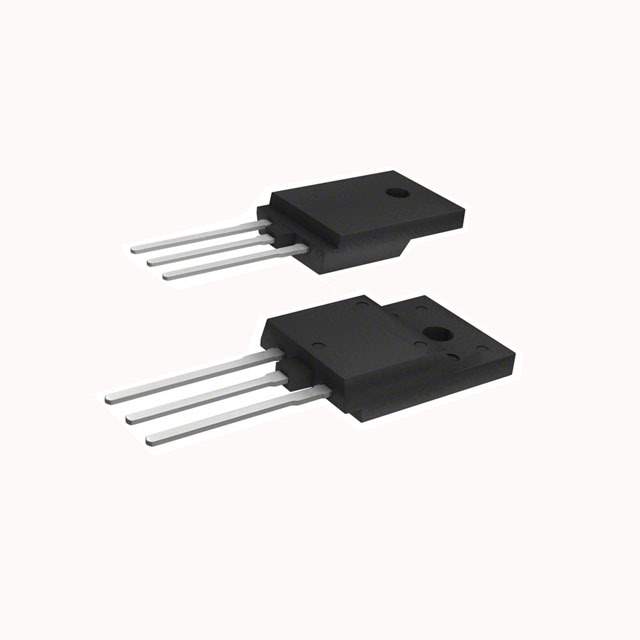

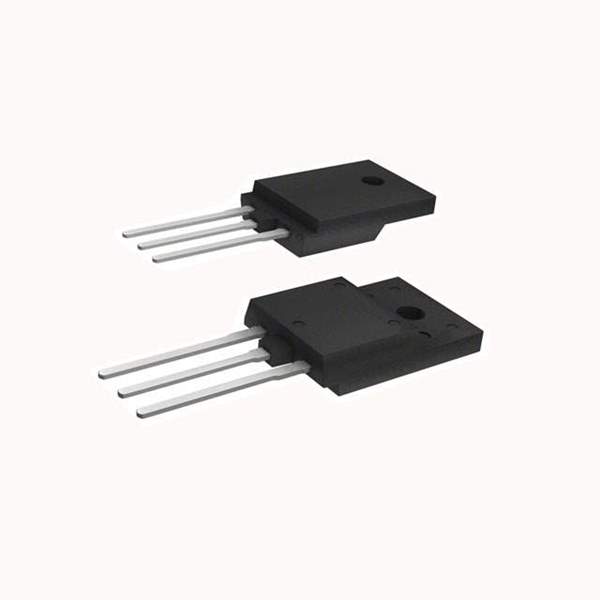

2SD2643 Real Image
Same model may have multiple batches, images only for reference.

2SD2643

Part No 2SD2643
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 110V 6A TO3PF
Datasheet
2SD2643 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 6A
Voltage - Collector Emitter Breakdown (Maximum) 110V
Vce Saturation (Maximum) @ Ib, Ic 2.5V @ 5mA, 5A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 5000 @ 5A, 4V
Power - Max 60W
Frequency - Transition 60MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PF
Win Source Part Number 762896-2SD2643
Family Name 2SD2643
Introduction Date July 05, 2001
ECCN EAR99
Estimated EOL Date 2019
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SD2643 CAD Model

Description

The 2SD2643 is an electronic component manufactured by Sanken.

  • Popularity: medium-popularity product
  • Supply and demand status: balanced supply and demand status
  • Type: transistor type NPN-Darlington
  • Power: 60W
  • Frequency transition: 60MHz
  • Voltage collector-emitter breakdown: 110V
  • Current collector: 6A
