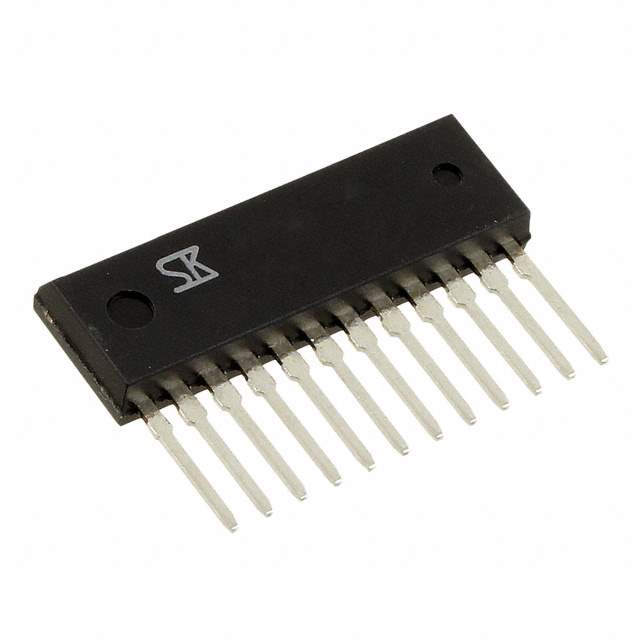

SMA5118 Real Image
Same model may have multiple batches, images only for reference.

SMA5118

Part No SMA5118
Manufacturer Sanken
Catalog Transistors - FETs, MOSFETs - RF
Description N-channel 3-phase DC motor 200V AC direct drive External dimensions
Datasheet
SMA5118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube
FET Type 6 N-Channel (3-Phase Bridge)
FET Feature Standard
Drain Source Voltage 500V
Current - Continuous Drain (Id) @ 25°C 5A
Rds On (Maximum) @ Id, Vgs 1.4 Ohm @ 2.5A, 10V
Vgs(th) (Maximum) @ Id 4V @ 1mA
Input Capacitance (Ciss) (Maximum) @ Vds 770pF @ 10V
Power - Max 4W
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package 12-SIP, Exposed Tab
Manufacturer Package 12-SIP
Manufacturer Homepage www.sanken-ele.co.jp/en
Win Source Part Number 741813-SMA5118
Popularity Medium
Supply and Demand Status Limited
Family Name SMA5118
Introduction Date March 05, 2001
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SMA5118 CAD Model

Description

The SMA5118 is a 3-phase bridge N-channel Power MOSFET in 12-SIP, Exposed Tab package. It is a Discrete Semiconductor Product.

  • Maximum Operating Temperature: 150°C
  • Drain-Source Voltage: 500V
  • FET Type: 6 N-channel
  • Standard FET Feature: Yes
  • Continuous Drain Current @ 25°C: 5A
  • Maximum Power: 4W
  • Input Capacitance (Ciss) Maximum @ Vds: 770pF @ 10V
  • Rds On (Maximum) @ Id, Vgs: 1.4 Ohm @ 2.5A, 10V
  • Introduced: March 05, 2001
  • ECCN: EAR99
  • Estimated EOL Date: 2025
