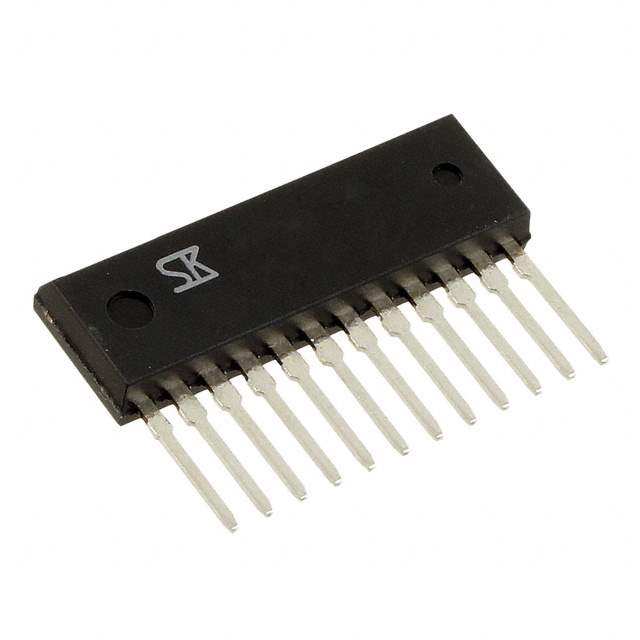

SMA5125 Real Image
Same model may have multiple batches, images only for reference.

SMA5125

Part No SMA5125
Manufacturer Sanken
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 3N/3P-CH 60V 10A 12-SIP
Datasheet
SMA5125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube/Rail
Status Active
FET Type 3 N and 3 P-Channel (3-Phase Bridge)
FET Feature Standard
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 10A
Maximum Rds On at Id,Vgs 140 mOhm @ 5A, 4V
Gate-Source Threshold Voltage 2V @ 250μA
Max Input Capacitance 460pF @ 10V
Maximum Power Dissipation 4W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package 12-SIP
Win Source Part Number 211785-SMA5125
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMA5125 CAD Model

Description

The Sanken SMA5125 is a 3-phase bridge FET type electronic component that comes with both 3 N and 3 P-Channel FETs.

  • FET Type: 3 N and 3 P-Channel
  • FET Feature: Standard
  • Package: 12-SIP
  • Maximum Power Dissipation: 4W
  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current: 10A @ 25°C
  • Maximum Rds On @ Id,Vgs: 140 mOhm @ 5A, 4V
