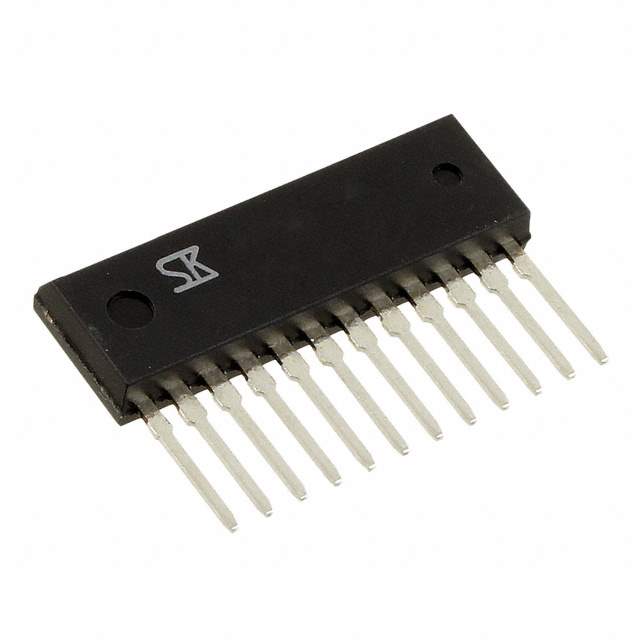

SMA5133 Real Image
Same model may have multiple batches, images only for reference.

SMA5133

Part No SMA5133
Manufacturer Sanken
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 3N/3P-CH 500V 2.5A 12-SIP
Datasheet
SMA5133 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube/Rail
Status Active
FET Type 3 N and 3 P-Channel (3-Phase Bridge)
FET Feature Standard
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 2.5A
Mounting Through Hole
Case / Package 12-SIP
Win Source Part Number 042666-SMA5133
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMA5133 CAD Model

Description

The SMA5133 is a 3-phase bridge FET manufactured by Sanken. This FET is a discrete semiconductor product and comes in a tube/rail packaging with through-hole mounting.

  • Packaging: Tube/Rail
  • Mounting: Through-Hole
  • Maximum Power Dissipation: Not Specified
  • Drain-Source Breakdown Voltage: 500V
  • Continuous Drain Current @ 25°C: 2.5A
  • Gate-Source Threshold Voltage: Not Specified
