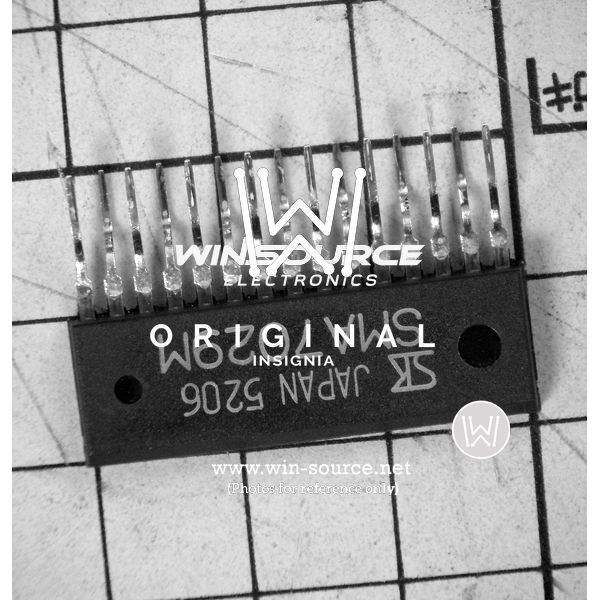

SMA7029M real image5571
Same model may have multiple batches, images only for reference.

SMA7029M

Part No SMA7029M
Manufacturer Sanken
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 15SIP
Datasheet
SMA7029M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sanken
Packaging Tube/Rail
Status Active
Motor Type - Stepper Unipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Step Resolution 1, 1/2
Applications General Purpose
Output Current 1.5A
Supply Voltage - Operating 10 V to 44 V
Voltage - Load 10 V to 44 V
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package 15-SIP
Win Source Part Number 046985-SMA7029M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMA7029M CAD Model

Description

The Sanken 046985-SMA7029M is a medium popularity electronic component with a balanced supply and demand status.

  • Type: Power MOSFET
  • Maximum Output Current: 1.5A
  • Voltage-Load Range: 10 V to 44 V
  • Application: Suitable for general purpose applications, through-hole mounting
  • Step Resolution: 1, 1/2
