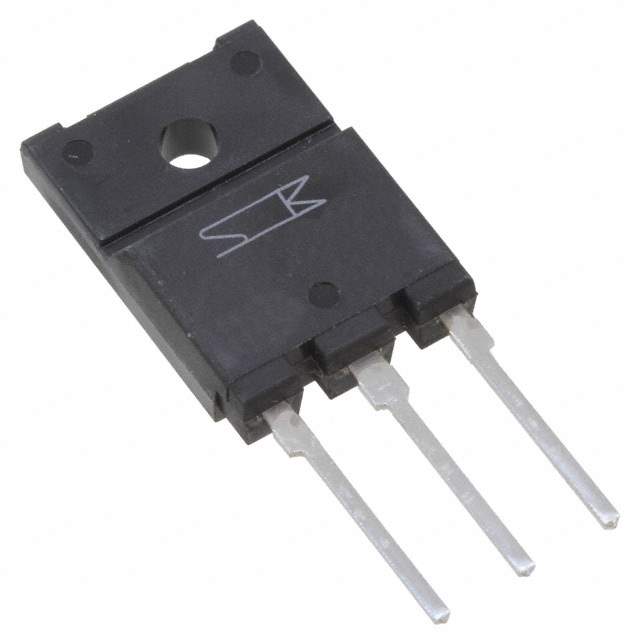

Same model may have multiple batches, images only for reference.

TMA166B-L

Name: TMA166B-L
Brand: Sanken
SKU: 785163
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMA166B-L
Manufacturer	Sanken
Catalog	Triacs
Description	TRIAC 600V 190A 3-Pin(3+Tab) TO-3PF Tube / TRIAC 600V 16A
Datasheet	TMA166B-L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Sanken
Packaging	Bulk
Triac Type	Standard
Voltage - Off State	600V
Current - On State (It (RMS)) (Maximum)	16A
Voltage - Gate Trigger (Vgt) (Maximum)	1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm)	180A, 190A
Current - Gate Trigger (Igt) (Maximum)	30mA
Configuration	Single
Operating Temperature Range	-40°C ~ 125°C (TJ)
Mounting Style	Through Hole
Package	TO-3P-3 Full Pack
Manufacturer Package	TO-3PF
Win Source Part Number	785163-TMA166B-L
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TMA166
Introduction Date	January 13, 2009
Estimated EOL Date	2022
Ultra Librarian 3D Model	Ultra Librarian TMA166B-L CAD Model

Alternative Products

Description

The Sanken TMA166B-L is a standard triac manufactured by Sanken.

Voltage Off State: 600V
Current Non-Rep. Surge: 180A and 190A @ 50 and 60Hz
Current On State: 16A
Voltage Gate Trigger: 1.5V
Maximum Gate Trigger Current: 30mA
Frequency Transition: 250MHz
Package Style: TO-3P-3 Full Pack
Mounting: Through-hole
Operating Temperature: -40°C to 125°C (TJ)
Family: TMA166
Introduction Date: January 13, 2009
Estimated EOL Date: 2022
Supply and Demand Status: Limited
