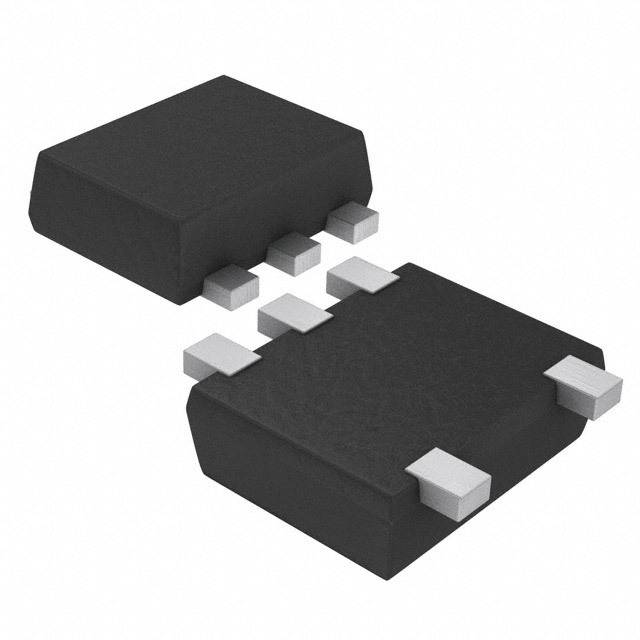

Same model may have multiple batches, images only for reference.
MCH5837-TL-E SANYO Semiconductor (U.S.A) Corporation
Same model may have multiple batches, images only for reference.

MCH5837-TL-E

Part No MCH5837-TL-E
Manufacturer SANYO Semiconductor (U.S.A) Corporation
Catalog FETs - Single
Description MOSFET N-CH 20V 2A MCPH5
Datasheet
MCH5837-TL-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products
Family Transistors - FETs, MOSFETs - Single
Manufacturer SANYO Semiconductor (U.S.A) Corporation
Packaging Reel(TR)
FET Type MOSFET N-Channel, Metal Oxide
FET Feature Diode (Isolated), Logic Level Gate
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 2A (Ta)
Rds On (Max) @ Id, Vgs 145 mOhm @ 1A, 4V
Gate Charge (Qg) @ Vgs 1.8nC @ 4V
Input Capacitance (Ciss) @ Vds 115pF @ 10V
Power - Max 800mW
Operating Temperature Range 150°C (TJ)
Mounting Style SMD/SMT
Package 6-SMD (5 Leads), Flat Lead
Manufacturer Device Package 5-MCPH
Win Source Part Number 003361-MCH5837-TL-E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MCH5837-TL-E CAD Model

Description

The SANYO Semiconductor (U.S.A) Corporation 003361-MCH5837-TL-E is a medium-popularity electronic component used in various applications.

  • Component Type: MOSFET N-channel, metal oxide transistor with a diode (isolated) and logic level gate
  • Drain to Source Voltage: 20V
  • Continuous Drain Current: 2A
  • Rds on (Max) @ Id, Vgs: 145 mOhm @ 1A, 4V
  • Manufacturer: SANYO Semiconductor (U.S.A) Corporation
