Same model may have multiple batches, images only for reference.

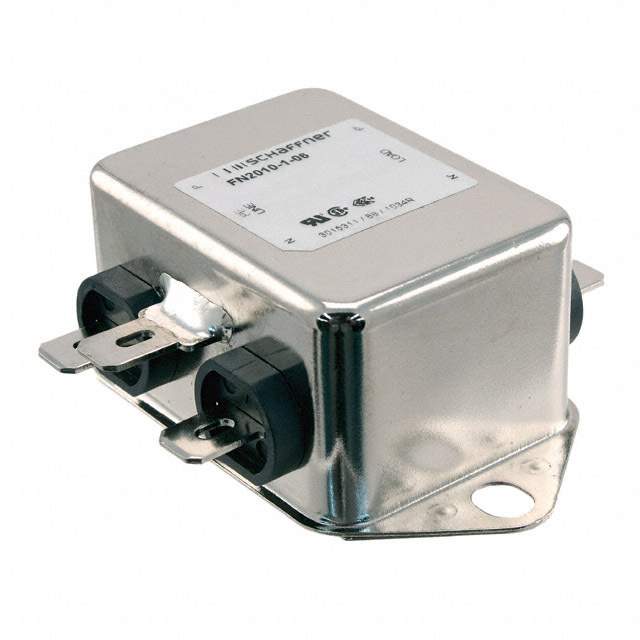

FN2010B-3-06 Real Image
Same model may have multiple batches, images only for reference.

FN2010B-3-06

Part No FN2010B-3-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 3A CHASS MNT  /  Single Phase EMC/EMI Line Filter 3 A 250VAC DC ~ 400Hz Single Stage Quick Connect
Datasheet
FN2010B-3-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Schaffner EMC Inc.
Series FN 2010
Package Tray
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Current 3 A
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CSA, ENEC, UR
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 2.5mH
Base Product Number FN2010B
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names FN2010B-3-06-ND,800799,293-654,817-1872
Standard Package 60
Win Source Part Number 1227714-FN2010B-3-06
Ultra Librarian 3D Model Ultra Librarian FN2010B-3-06 CAD Model

Description

The FN2010B-3-06 electronic component is a single phase filter type product manufactured by Schaffner EMC Inc.

  • Filter Type: Single Phase
  • Configuration: Single Stage
  • Termination Style: Quick Connect
  • Application: General Purpose
  • Inductance: 2.5mH
  • Current: 3A
  • Voltage Rated AC: 250V
  • Frequency Operating: DC ~ 400Hz
  • Mounting Type: Chassis Mount
  • Temperature Range: -25°C ~ 100°C
