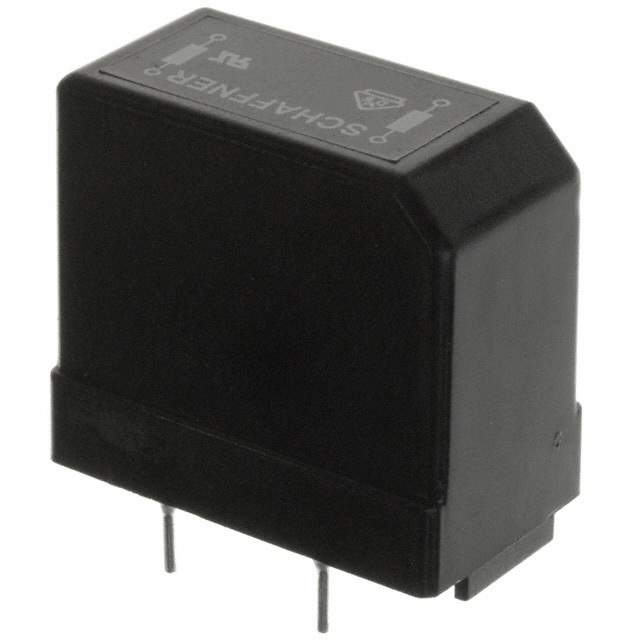

RN242-4-02-3M3

Part No RN242-4-02-3M3
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 3.3MH 4A 2LN TH / 3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 4A DCR 67mOhm (Typ)
Datasheet
RN242-4-02-3M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Schaffner EMC Inc.
Packaging Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.3 mH @ 10 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 67mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Through Hole
Size / Dimension 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) 1.362" (34.60mm)
Case / Package Vertical, 4 PC Pin
Base Product Number RN242
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 816579,817-2219
Standard Package 15
Win Source Part Number 1331515-RN242-4-02-3M3
Ultra Librarian 3D Model Ultra Librarian RN242-4-02-3M3 CAD Model

Description

The Schaffner EMC Inc. RN242-4-02-3M3 is a common mode choke filter used in power line applications.

  • Voltage Rating: 300V
  • Maximum Current: 4A
  • Inductance: 3.3mH @ 10 kHz
  • DC Resistance: 67mOhm (Typ)
  • Standard Package: 15 units
  • Mounting: Through-Hole
  • Height: 1.362 inches (34.60mm)
  • Case: Vertical, 4 PC pin
  • RoHS3: Compliant
  • Approvals: ENEC, UR, VDE
