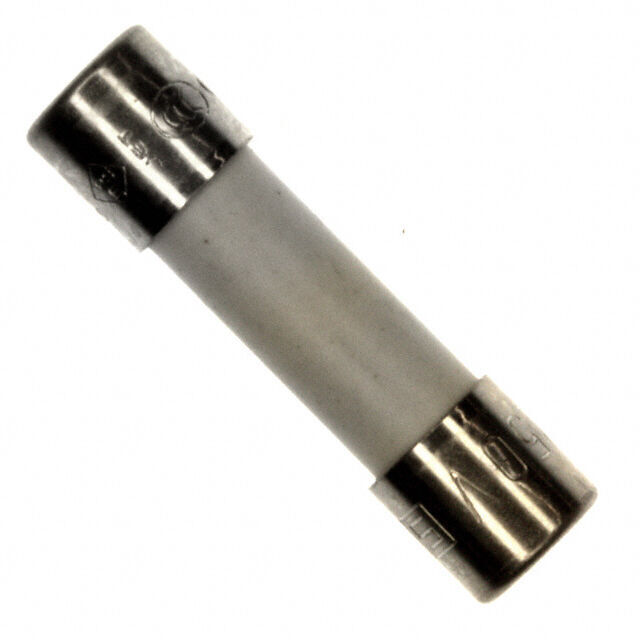

0001.2514 SCHURTER Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0001.2514

Part No 0001.2514
Manufacturer Schurter Inc.
Catalog Circuit Protection
Description FUSE CERM 10A 250VAC 150VDC 5X20
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionFuses
Mfr SCHURTER Inc.
Series SPT 5x20
Packaging Bulk
Part Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 10 A
Voltage Rating - AC 250 V
Voltage Rating - DC 150 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1kA AC, 1.5kA DC
Melting I2t 400.0
Approval Agency cURus, VDE
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Ultra Librarian 3D Model Ultra Librarian 0001.2514 CAD Model
