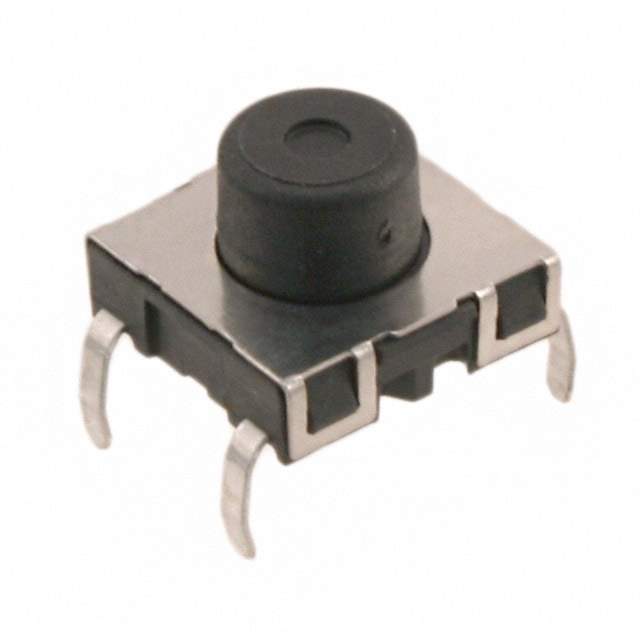

Same model may have multiple batches, images only for reference.

1241.1625.1

Name: 1241.1625.1
Brand: Schurter Inc.
SKU: 1192113
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1241.1625.1
Manufacturer	Schurter Inc.
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 42V / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet	1241.1625.1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	SCHURTER Inc.
Series	PMS
Package	Bulk
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 42VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	8.35mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	11.40mm x 11.40mm
Illumination	Non-Illuminated
Operating Force	220gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Tactile Feedback
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	Polyphenylene Sulfide (PPS)
Switch Travel	0.35mm
Mechanical Life	1,000,000 Cycles
Base Product Number	1241.1625
MSL Level	Vendor Undefined
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	1241.1625.1-ND,486-7025
Standard Package	100
Win Source Part Number	1192113-1241.1625.1
Ultra Librarian 3D Model	Ultra Librarian 1241.1625.1 CAD Model

Alternative Products

Description

The PMS tactile switch is designed for use in harsh environments. The switch features an IP67 rating, making it both dust-tight and waterproof.

IP Rating: IP67
Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Material: Polyphenylene Sulfide (PPS)
Tactile Feedback: Yes
Mechanical Life: 1,000,000 cycles
Operating Force: 220gf
Outline: 11.40mm x 11.40mm
Operating Temperature Range: -40°C to 85°C
Mounting Type: Through-Hole
ECCN: EAR99
REACH: Unaffected
HTSUS: 8536.50.9031
Manufacturer: SCHURTER Inc.
