Same model may have multiple batches, images only for reference.

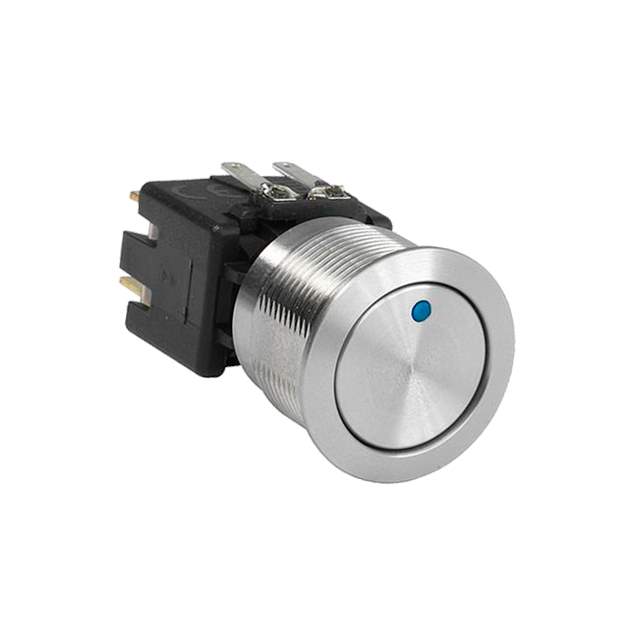

1241.6833.1124000 Real Image
Same model may have multiple batches, images only for reference.

1241.6833.1124000

Part No 1241.6833.1124000
Manufacturer Schurter Inc.
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPST 12A 250V  /  Pushbutton Switch DPST Anti-Vandal, Illuminated Panel Mount, Front
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr SCHURTER Inc.
Series MSM LA
Package Bulk
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit DPST
Switch Function Off-On
Current Rating (Amps) 12A (AC/DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Silver
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 3.7 VDC
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection IP64 - Dust Tight, Water Resistant
Panel Cutout Dimensions Circular - 22.10mm Dia
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number 1241.6833
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9035
Other Names 1241.6833.1124000-ND,Q4395778,486-3689
Standard Package 10
Win Source Part Number 1068590-1241.6833.1124000
Ultra Librarian 3D Model Ultra Librarian 1241.6833.1124000 CAD Model

Description

The MSM LA is an anti-vandal, illuminated pushbutton switch from SCHURTER Inc.

  • Package: Bulk
  • Termination Style: Quick Connect - 0.187" (4.7mm)
  • Panel Cutout Dimension: 22.10mm Dia
  • Circuit: DPST
  • Switch Function: Off-On
  • Voltage Rating: 250V AC, 30V DC
  • Electrical Life: 50,000 Cycles
  • Mechanical Life: 100,000 Cycles
  • Actuator Type: Round Button
  • Color: Silver
  • Ingress Protection: IP64 - Dust Tight, Water Resistant
  • Illumination Voltage: 3.7VDC
  • Illumination Type: LED Blue
  • Operating Temperature: -20°C to 85°C
  • MSL: Vendor Undefined
  • HTSUS: 8536.50.9035
