3101.0055

Part No 3101.0055
Manufacturer Schurter Inc.
Catalog Fuseholders

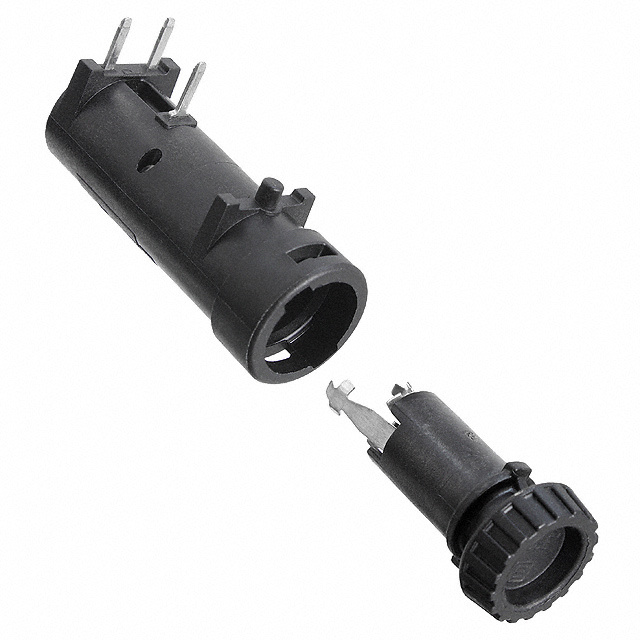

Description FUSE HLDR CARTRIDGE 400V 16A PCB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Current Rating (Amps) 16 A
For Use With/Related Products 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 400V
Orientation Horizontal
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1602289-3101.0055
Ultra Librarian 3D Model Ultra Librarian 3101.0055 CAD Model
