Same model may have multiple batches, images only for reference.

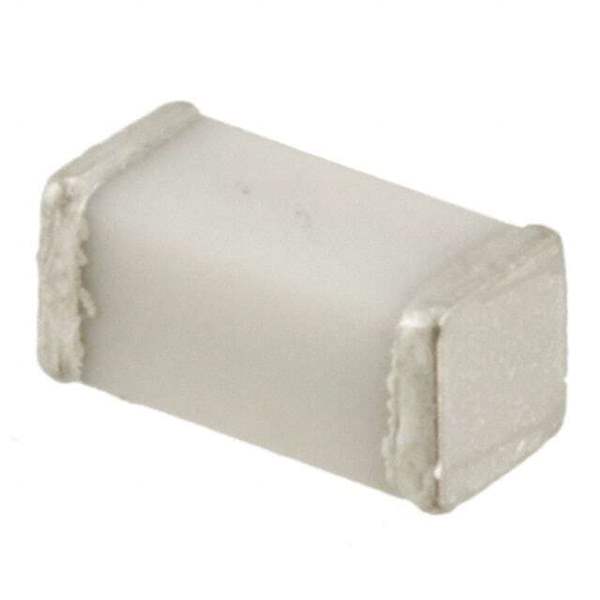

3410.0029.01

Name: 3410.0029.01
Brand: Schurter Inc.
SKU: 1356982
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3410.0029.01
Manufacturer	Schurter Inc.
Catalog	Fuses
Description	FUSE BRD MT 750MA 125VAC/VDC SMD / 750 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet	3410.0029.01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Fuses
Mfr	SCHURTER Inc.
Series	MGA
Package	Bulk
Product Status	Active
Mounting Type	Surface Mount
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating (Amps)	750 mA
Voltage Rating - AC	125 V
Voltage Rating - DC	125 V
Response Time	Fast Blow
Package / Case	2-SMD, Square End Block
Breaking Capacity @ Rated Voltage	50A AC, 300A DC
Melting I²t	0.01
Approval Agency	cURus
Temperature Range - Operating	-55°C ~ 150°C
Color	-
Size / Dimension	0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm)
DC Cold Resistance	0.115 Ohms
Base Product Number	3410.0029
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.10.0040
Win Source Part Number	1356982-3410.0029.01
Ultra Librarian 3D Model	Ultra Librarian 3410.0029.01 CAD Model

Alternative Products

Description

The MGA series is a surface mount circuit protection fuse designed for use in electronic components from SCHURTER Inc.

Current Rating: 750 mA
Voltage Rating: 125 V AC and 125 V DC
Response Time: Fast Blow
Breaking Capacity: 50A AC and 300A DC @ rated voltage
Size: 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm)
Approval: cURus
DC Cold Resistance: 0.115 Ohms
Packaging: Bulk
Product Status: Active
