Same model may have multiple batches, images only for reference.

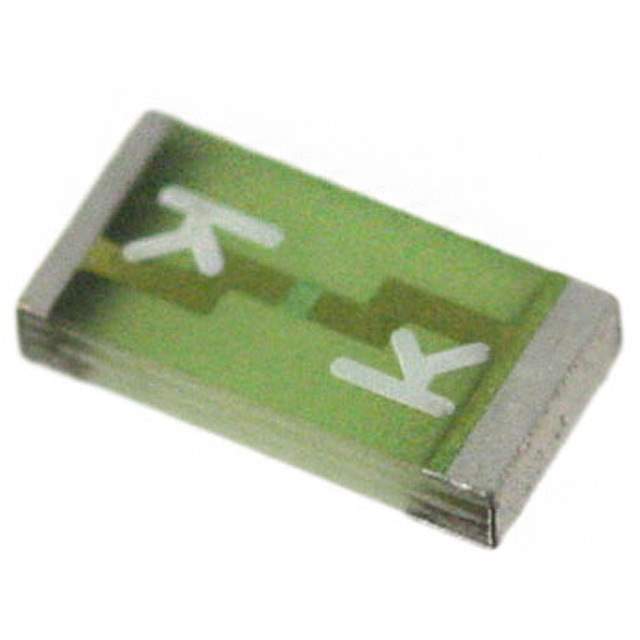

3413.0214.22 Real Image
Same model may have multiple batches, images only for reference.

3413.0214.22

Part No 3413.0214.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 630MA 32VAC 63VDC
Datasheet
3413.0214.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 630mA
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 63A
Nominal Melting - I2t 0.076
Approvals cURus, VDE
Temperature Range - Operating -55°C to 90°C
Nominal Cold Resistance 0.23 Ohm
Win Source Part Number 118863-3413.0214.22
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3413.0214.22 CAD Model

Description

3413.0214.22 Switching Relay

Ideal for applications requiring efficient switching and control, the 3413.0214.22 relay offers superior performance in switching operations across residential, commercial, and industrial setups.

  • Applications: HVAC systems, smart home technology, and automation systems.
  • Features and Benefits:
    • High Reliability: Ensures consistent performance over extensive use.
    • Energy Efficient: Designed to offer robust operation while minimizing power consumption.
    • Compact Design: Facilitates easy integration into existing setups.

    The 3413.0214.22 relay is the perfect choice for experts focusing on innovation and efficiency in electronic switching solutions.
