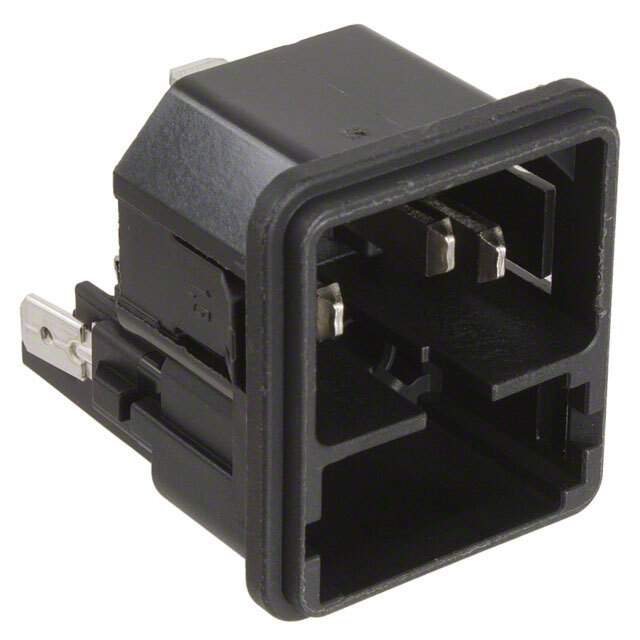

4301.0234 Real Image
Same model may have multiple batches, images only for reference.

4301.0234

Part No 4301.0234
Manufacturer Schurter Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT MOD RCPT IEC320-C14 PNL
Datasheet
4301.0234 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Schurter Inc.
Packaging Bulk
Status Active
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current Rating 10A
Voltage Rating 250VAC
Nominal current IN - UL 10A
Voltage - UL 250VAC
Filter Type Unfiltered - Commercial
Fuse Yes
Number of Positions 3
Mounting Panel Mount, Snap-In
Termination Quick Connect - 0.189" (4.8mm)
Switch Features Voltage Selector
Fuse Holder, Drawer Fuse Holder
Panel Cutout Dimensions Rectangular - 27.50mm x 31.50mm
Panel Thickness 0.315" (8.00mm)
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approvals CCC, CSA, ENEC, UL
Win Source Part Number 1021926-4301.0234
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 4301.0234 CAD Model

Description

The 4301.0234 is a male blades module receptacle connector from Schurter Inc.

  • Popularity: medium
  • Supply and Demand Status: sufficient
  • Application: various electronic devices
  • Voltage Rating: 250VAC
  • Current Rating: 10A
  • Feature: over current protection
  • Approvals: CCC, CSA, ENEC, and UL
