4804.1400 Schurter Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

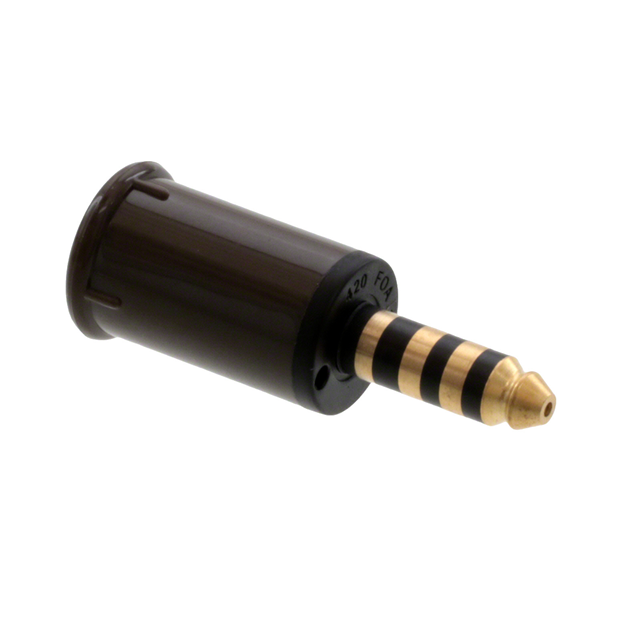

4804.1400

Part No 4804.1400
Manufacturer Schurter Inc.
Catalog Barrel - Audio Connectors
Description 7.50mm (0.295") - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr SCHURTER Inc.
Series 4804
Packaging Bulk
Connector Type Phone Plug
Gender Male
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 7.50mm (0.295") - Headphone
Actual Diameter 0.295" (7.50mm)
Number of Positions/Contacts 4 Conductors, 4 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder
Shielding Unshielded
Temperature Range - Operating -20°C ~ 70°C
Voltage - Rated 12VAC/DC
Current Rating (Amps) 2 A
Mating Length/Depth 0.906" (23.00mm)
Contact Material - Plating Nickel
Body Color Silver, Black
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Plastic
Contact Material Brass
Cable Opening 0.406" (10.30mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1480526-4804.1400
Ultra Librarian 3D Model Ultra Librarian 4804.1400 CAD Model
