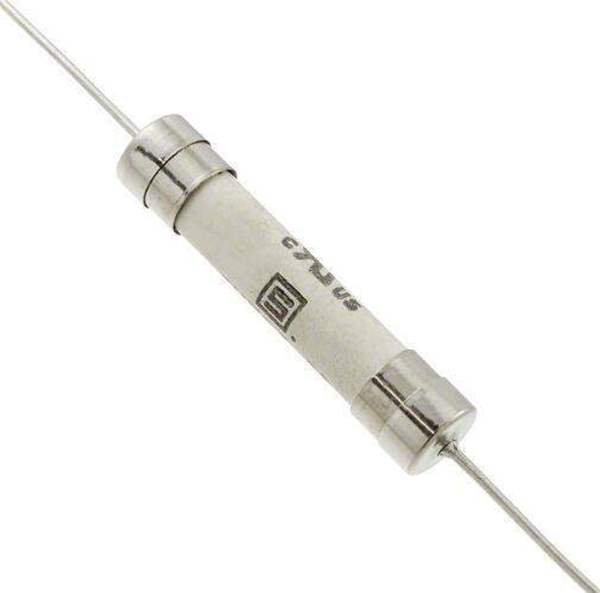

8020.0607.PTSCHURTER Inc.
Same model may have multiple batches, images only for reference.

8020.0607.PT

Part No 8020.0607.PT
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERAMIC 30A 250VAC 3AB 3AG
Datasheet
8020.0607.PT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer SCHURTER Inc.
Category Circuit Protection Fuses
Packaging  Bulk
Part Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Approval Agency cURus
Operating Temperature -40°C ~ 85°C
Size / Dimension 0.270" Dia x 1.291" L (6.85mm x 32.80mm)
DC Cold Resistance 0.0018 Ohms
Win Source Part Number WS1304277-8020.0607.PT
Ultra Librarian 3D Model Ultra Librarian 8020.0607.PT CAD Model

Description

30 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
