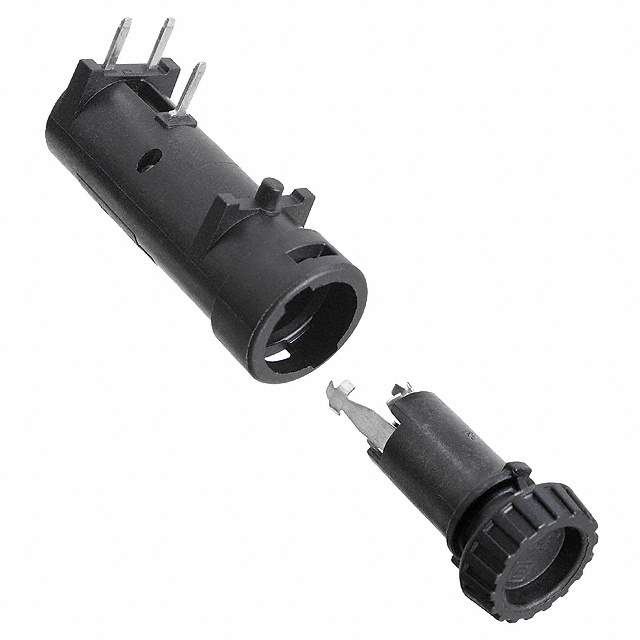

3101.0055 Real Image
Same model may have multiple batches, images only for reference.

3101.0055

Part No 3101.0055
Manufacturer Schurter Inc.
Catalog Fuseholders
Description FUSE HLDR CARTRIDGE 400V 16A PCB / Fuse Holder 16 A 400V 1 Circuit Cartridge Through Hole
Datasheet
3101.0055 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr SCHURTER Inc.
Series FPG5
Package Bulk
Mounting Type Through Hole
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Current Rating (Amps) 16 A
For Use With/Related Products 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 400V
Orientation Horizontal
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1340343-3101.0055
Ultra Librarian 3D Model Ultra Librarian 3101.0055 CAD Model

Description

The FPG5 series from SCHURTER Inc. is a circuit protection fuseholder that is designed for use with 5mm x 20mm fuses. Bold the product name (e.g., BAV99S,135 → FPG5 series) and manufacturer (e.g., Nexperia USA Inc. → SCHURTER Inc.).

  • Fuse Size: 5mm x 20mm
  • Mounting Type: Through Hole
  • Termination Style: PC Pins
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Voltage: 400V
  • Current Rating: 16 A
  • Package Quantity: 100
  • Orientation: Horizontal
  • REACH: Unaffected
  • ECCN: EAR99
  • Win Source Part Number: 1340343-3101.0055
