Same model may have multiple batches, images only for reference.

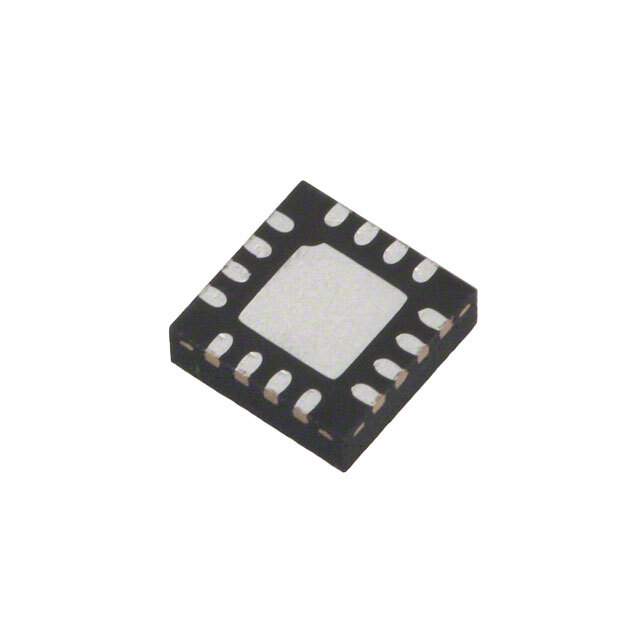

ECLAMP2357N.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP2357N.TCT

Part No ECLAMP2357N.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description EMI Filter and ESD Protection for Secure Digital Card Interfaces
Datasheet
ECLAMP2357N.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Series EClamp
Packaging Reel - TR
Part Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Attenuation Value 20dB @ 1GHz ~ 3GHz
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 12pF
ESD Protection Yes
Operating Temperature Range -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Mounting SMD
Package 16-QFN
Size 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height 0.039" (1.00mm)
Win Source Part Number 1170697-ECLAMP2357N.TCT
Manufacturer Homepage www.semtech.com
Popularity Medium
Supply and Demand Status Limited
Family Name ECLAMP2357N
Introduction Date October 06, 2004
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian ECLAMP2357N.TCT CAD Model

Description

The EClamp2357N.TCT from Semtech Corporation is an electronic component that falls under the filters category.

  • Type: Low Pass
  • Filter Order: 2nd
  • Attenuation: 20dB @ 1GHz ~ 3GHz
  • Supply and Demand: Limited
  • Application: Data lines for mobile devices
