Same model may have multiple batches, images only for reference.

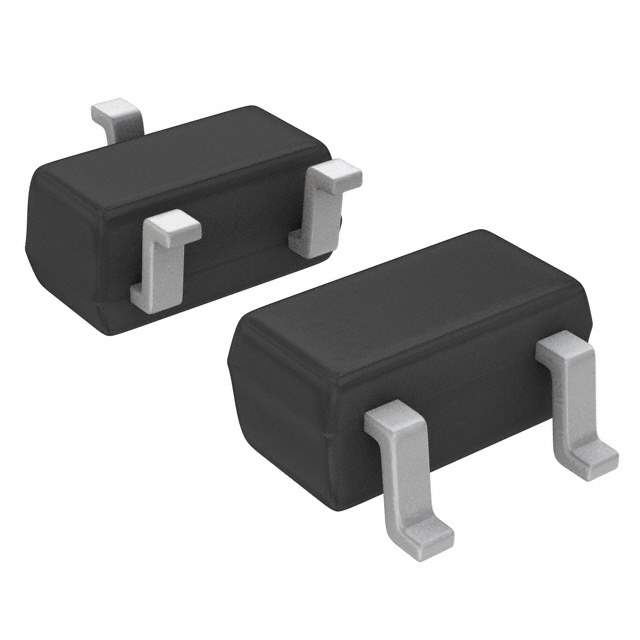

RCLAMP2402B.TCT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP2402B.TCT

Part No RCLAMP2402B.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 24VWM 55VC
Datasheet
RCLAMP2402B.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V (Max)
Minimum Breakdown Voltage 26.7V
Max Clamping Voltage 55V
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Dissipation - Pd 200W
Applications HDMI
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SC-75 (SOT523)
Win Source Part Number 027255-RCLAMP2402B.TCT
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Multimedia, Industrial
Ultra Librarian 3D Model Ultra Librarian RCLAMP2402B.TCT CAD Model

Description

The Semtech Corporation Zener Diode is a high-performance circuit protection solution designed for use in HDMI applications.

  • Application: HDMI
  • Maximum Clamping Voltage: 55V
  • Peak Pulse Current: 4A
  • Popularity: high demand
  • Applications: multimedia and industrial systems
