Same model may have multiple batches, images only for reference.

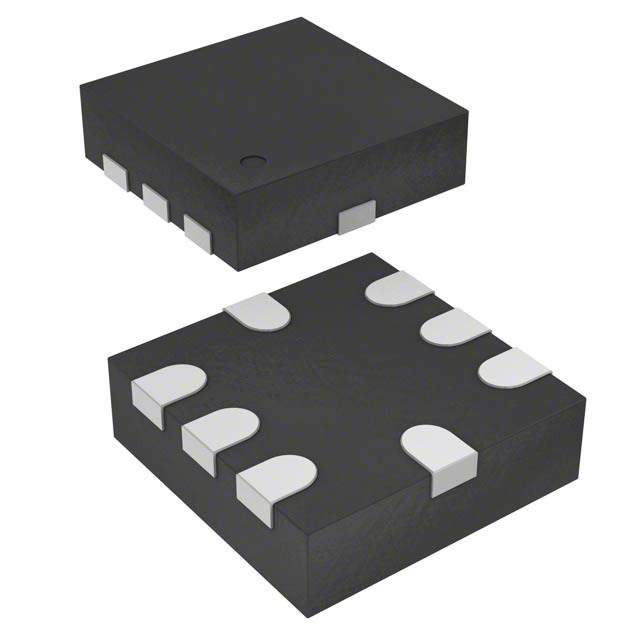

SC561ULTRT Real Image
Same model may have multiple batches, images only for reference.

SC561ULTRT

Part No SC561ULTRT
Manufacturer Semtech Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.85V/3.1V 0.3A 8MLPQ
Datasheet
SC561ULTRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 2
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 2.85V, 3.1V
Dropout Voltage-Max 0.25V @ 250mA, 0.25V @ 250mA
Output Current 300mA, 300mA
Operating Supply Current 60μA to 85μA
PSRR 65dB (1kHz)
Control Features Enable, Power Good
Protection Features Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-MLPQ-UT (1.5x1.5)
Win Source Part Number 1094837-SC561ULTRT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SC561ULTRT CAD Model

Description

The Semtech Corporation SC561ULTRT is a fixed output type DC-DC regulator that has two regulators and can provide an output current of 300mA for each regulator.

  • Control Feature: enable and power good
  • Package: 8-MLPQ-UT (1.5x1.5)
  • Maximum Input Voltage: 5.5V
  • Nominal Output Voltage (min/fixed): 2.85V and 3.1V
  • Dropout Voltage-Max: 0.25V @ 250mA for both regulators
  • Operating Supply Current: 60μA to 85μA
  • PSRR: 65dB (1kHz)
  • Protection Features: over-temperature, short circuit, and under-voltage lockout (UVLO)
