Same model may have multiple batches, images only for reference.

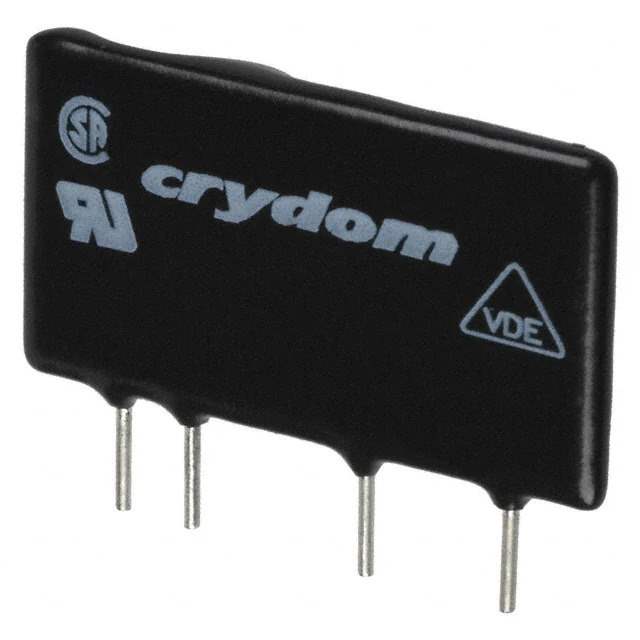

CX380D5R Real Image
Same model may have multiple batches, images only for reference.

CX380D5R

Part No CX380D5R
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 5A 48-530V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Sensata-Crydom
Series CX
Package Bulk
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 4 ~ 15VDC
Voltage - Load 48 V ~ 530 V
Load Current 5 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Base Product Number CX380D
Standard Package 40 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0055
California Prop 65 Warning Information
Win Source Part Number 916203-CX380D5R
Ultra Librarian 3D Model Ultra Librarian CX380D5R CAD Model

Description

The 916203-CX380D5R is a solid state relay from Sensata-Crydom's CX series.

  • Input Voltage: 4 ~ 15VDC
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 5 A
  • Voltage Range: 48 V ~ 530 V
  • Termination Style: PC pin
  • Mounting: Through-hole
  • Package: 4-SIP
  • Standard Package: 40 pcs
  • Product Status: Active
  • California Prop 65: Compliant
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
