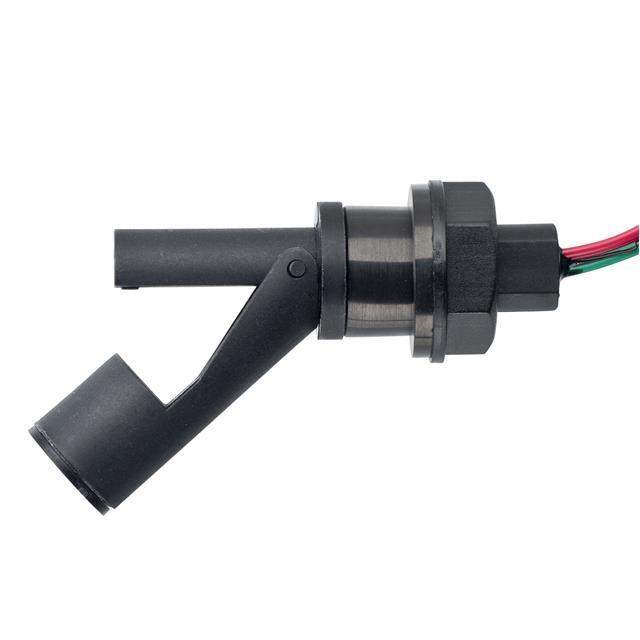

TSF73H100DN Real Image1 TSF73H100DN Real Image2
Same model may have multiple batches, images only for reference.
TSF73H100DN Real Image1 TSF73H100DN Real Image2
TSF73H100DN Real Image1 TSF73H100DN Real Image2
Same model may have multiple batches, images only for reference.

TSF73H100DN

Part No TSF73H100DN
Manufacturer Sensata-Cynergy3
Catalog Float, Level Sensors
Description SENSOR LEVEL SWITCH SGL / Liquid, Temperature Level Sensor Switch (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Float, Level Sensors
Mfr Sensata-Cynergy3
Series TSF70
Package Bulk
Type Liquid, Temperature
Output Type Switch (Single Float)
Output Configuration SPST-NC/NO
Current 1 A
Minimum Liquid Specific Gravity 0.85
Switch Actuation Level 0.276", 0.464" (7mm, 20mm)
Mounting Type Panel Mount, M16x2 Thread
Material - Housing & Prism Nylon
Temperature Range - Operating -20°C ~ 75°C
Voltage Rating 300VAC, 300VDC
Base Product Number TSF73H100
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Standard Package 5 pcs
Win Source Part Number 1383732-TSF73H100DN
Ultra Librarian 3D Model Ultra Librarian TSF73H100DN CAD Model

Description

The 1383732-TSF73H100DN is a float level sensor designed for liquid and temperature sensing applications from Sensata-Cynergy3.

  • Series: TSF70
  • Application: Liquid and Temperature Sensing
  • Voltage Rating: 300VAC/300VDC
  • Current Rating: 1A
  • Packaging: Bulk
  • Standard Package: 5 pcs
  • Output Configuration: SPST-NC/NO
  • Mounting Type: Panel Mount
  • Thread: M16x2
  • Operating Temperature: -20°C to 75°C
  • Switch Actuation Levels: 0.276" and 0.464" (7mm and 20mm)
  • Housing and Prism Material: Nylon
