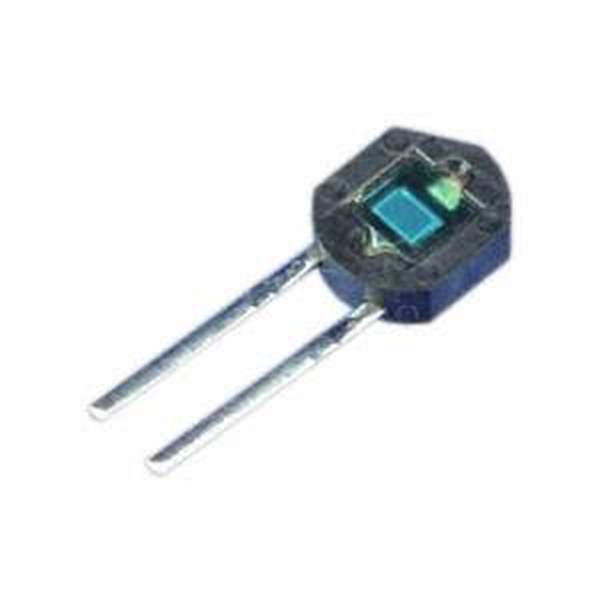

BS120E0F Real Image
Same model may have multiple batches, images only for reference.

BS120E0F

Part No BS120E0F
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE BLUE SENS 1.55MM SQ / Photodiode Chip 560nm 2-Pin
Datasheet
BS120E0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Bulk
Part Status Obsolete(EOL)
Wavelength 560nm
Spectral Range 500nm ~ 600nm
Voltage - DC Reverse (Vr) (Maximum) 10V
Current - Dark (Typ) 3pA
Active Area 1.55mm2
Operating Temperature Range -20°C ~ 60°C
Mounting Style Through Hole
Package Side View
Win Source Part Number 770397-BS120E0F
Popularity Medium
Supply and Demand Status Balance
Family Name BS120
Introduction Date April 27, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BS120E0F CAD Model

Description

The Sharp Microelectronics BS120E0F is a through-hole diode sensor manufactured by Sharp Microelectronics.

  • Spectral Range: 500nm ~ 600nm
  • Wavelength: 560nm
  • Active Area: 1.55mm2
  • Maximum DC Reverse Voltage: 10V
  • Operating Temperature Range: -20°C ~ 60°C
  • Current-Dark: 3pA
  • Package: Bulk
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
