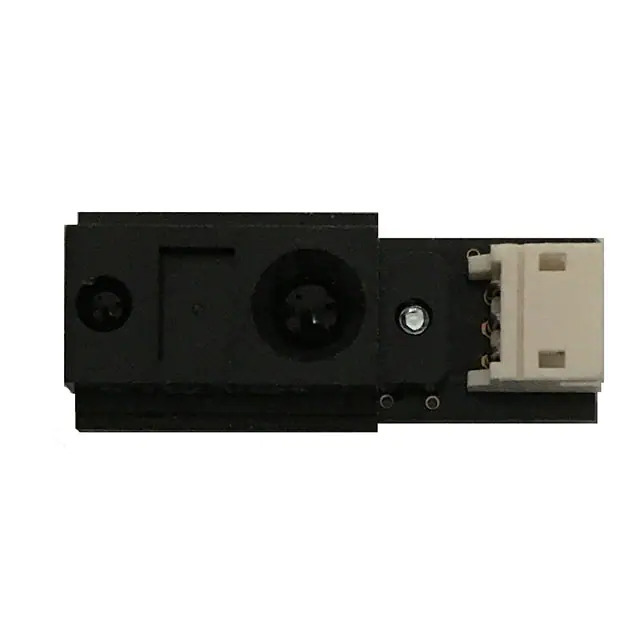

GP2Y0AF15X Sharp Microelectronics
Same model may have multiple batches, images only for reference.

GP2Y0AF15X

Part No GP2Y0AF15X
Manufacturer Sharp Microelectronics
Catalog Optical Sensors - Distance Measuring
Description SENSOR OPTICAL 1.5-15CM ANALOG
Datasheet
GP2Y0AF15X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Distance Measuring
Mfr SHARP/Socle Technology
Series -
Package Tray
Product Status Active
Sensing Distance 0.59" ~ 5.91" (1.5 ~ 15cm)
Output Type Analog
Voltage - Supply 4.5V ~ 5.5V
Current - Supply 30 mA
Voltage - Output Difference (Typ) @ Distance 2.6V @ 1.5 ~ 15cm
Voltage - Output (Typ) @ Distance 400mV @ 15cm
Temperature Range - Operating -10°C ~ 60°C
Base Product Number GP2Y0
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9031.80.8085
Win Source Part Number 1375666-GP2Y0AF15X
Ultra Librarian 3D Model Ultra Librarian GP2Y0AF15X CAD Model

Description

The GP2Y0AF15X is an optical sensor used for distance measuring applications.

  • Operating Temperature: -10°C to 60°C
  • Manufacturer: SHARP/Socle Technology
  • Series: GP2Y0
  • Voltage Supply: 4.5V to 5.5V
  • Output Type: Analog
  • Current Supply: 30mA
  • Sensing Distance: 0.59" to 5.91" (1.5cm to 15cm)
  • Voltage Output Difference: 2.6V @ a distance of 1.5cm to 15cm
