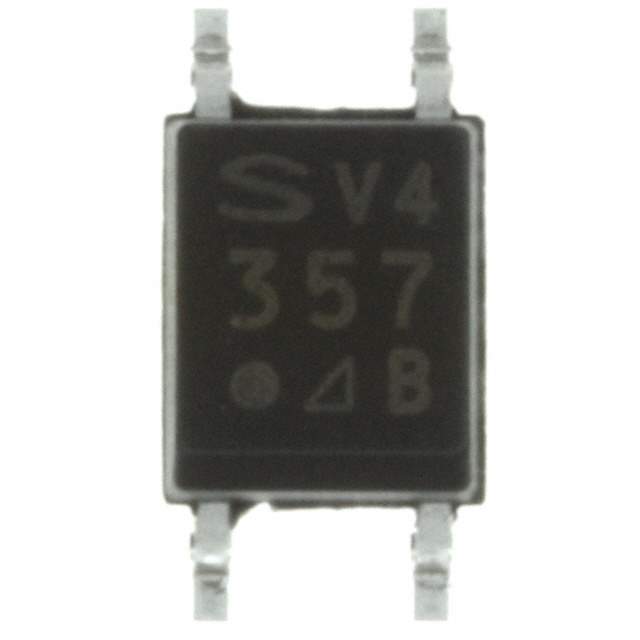

PC357N6J000F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 130% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 116609-PC357N6J000F
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Ultra Librarian 3D Model Ultra Librarian PC357N6J000F CAD Model

Description

Sharp Microelectronics offers PC357N6J000F, an isolator with a 3750Vrms isolation voltage.

  • Output Type: transistor
  • Mounting Style: surface mount
  • Forward Voltage: 1.2V
  • Output Voltage (max): 80V
  • Temperature Range: -30°C to 100°C
  • DC Current Transfer Ratio (min): 130% @ 5mA
  • DC Current Transfer Ratio (max): 400% @ 5mA
  • Popularity: medium
  • Supply and Demand Status: balanced
