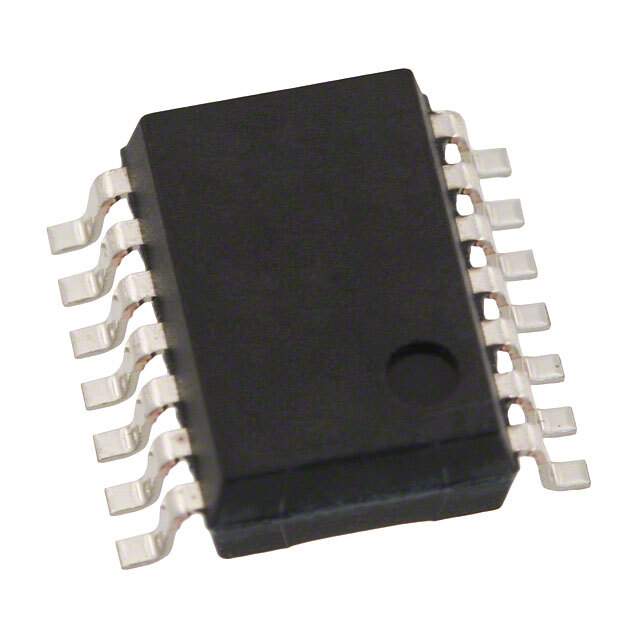

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 4000Vrms
Common Mode Transient Immunity (Min) 1.5kV/μs
Propagation Delay tpLH / tpHL (Max) 2μs, 2μs
Rise and Fall Time 200ns, 200ns
Current - Peak Output 400mA
Forward Voltage 1.2V
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 30 V
Temperature Range - Operating -25°C to 80°C
Mounting SMD (SMT)
Case / Package 14-SMT
Approvals UR
Win Source Part Number 061192-PC928J00000F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PC928J00000F CAD Model

Description

The Sharp Microelectronics 061192-PC928J00000F is an optical coupling isolator that has a 4000Vrms isolation voltage.

  • Common Mode Transient Immunity: 1.5kV/μs
  • Maximum Propagation Delay tpLH / tpHL: 2μs, 2μs
  • Continuous Forward Current: 25mA
  • Rise and Fall Time: 200ns, 200ns
  • Suitable for: electronic devices that require a reliable and efficient performance.
