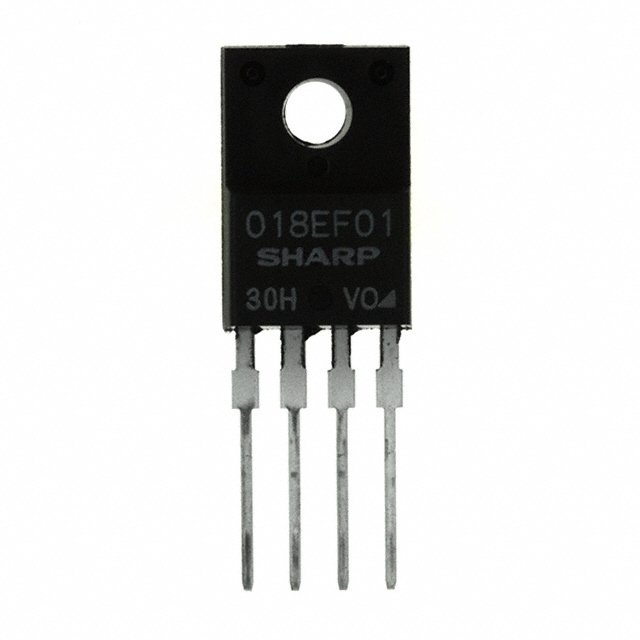

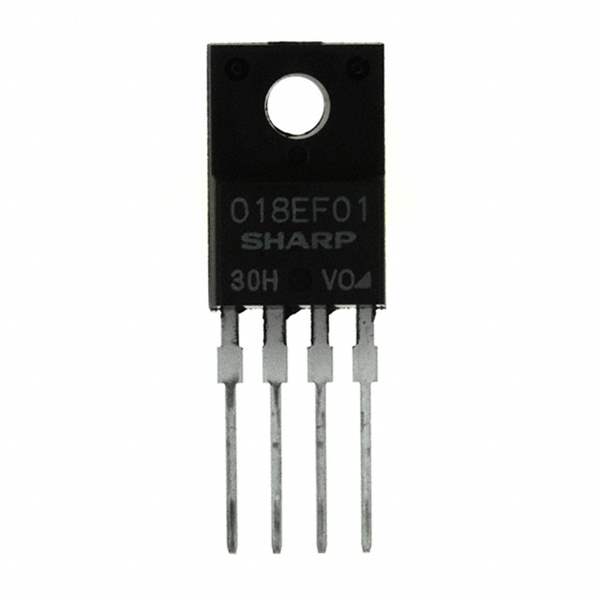

PQ018EF01SZH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ018EF01SZH

Part No PQ018EF01SZH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.8V 1A TO220-4
Datasheet
PQ018EF01SZH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.8V
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 1.8V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 045901-PQ018EF01SZH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ018EF01SZH CAD Model

Description

The Sharp Microelectronics PQ018EF01SZH is a positive fixed regulator that provides an output voltage of 1.8V and output current of 1A. The regulator is enabled by control features and has overcurrent and over-temperature protection features.

  • Output Voltage: 1.8V
  • Output Current: 1A
  • Control Features: Enabled
  • Protection Features: Overcurrent and over-temperature
  • Case/Package: TO-220-4
  • Maximum Input Voltage: 10V
  • Nominal Output Voltage: 1.8V
  • Operating Supply Current: 2mA
  • PSRR: 60dB (120Hz)
  • Category: Integrated circuits
  • Status: Obsolete (EOL)
  • Operating Temperature Range: -40°C to 85°C
  • Alternative Parts: TPS76818QPWPREP, BA18BC0WFP, and ADP3338AKC-1.8
  • Supply and Demand Status: Balanced
