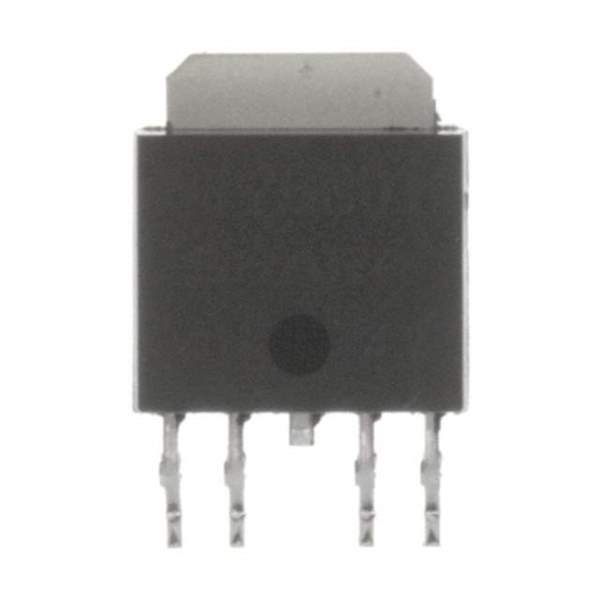

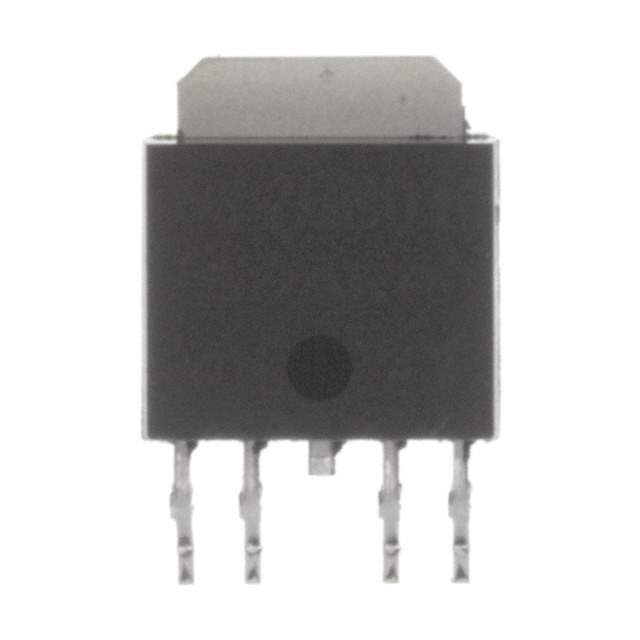

PQ012GN01ZPH Real Image
Same model may have multiple batches, images only for reference.

PQ012GN01ZPH

Part No PQ012GN01ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.2V 1A SC63
Datasheet
PQ012GN01ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1.2V
Output Current 1A
PSRR 60dB to 53dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 1.2V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 107006-PQ012GN01ZPH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ012GN01ZPH CAD Model

Description

It has a balance supply and demand status. It has a maximum input voltage of 5.5V and nominal output voltage (min/fixed) of 1.2V. It is designed to regulate voltage in electronic circuits and has over current and over temperature protection features.
