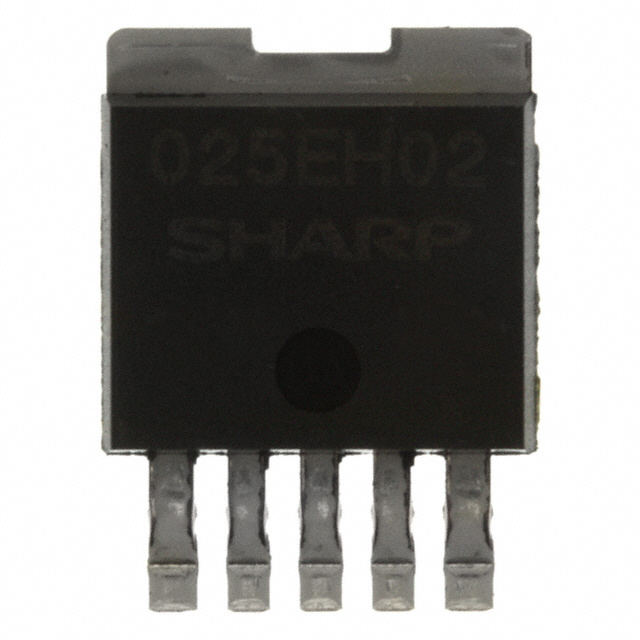

PQ025EH02ZPH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ025EH02ZPH

Part No PQ025EH02ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 2A TO263
Datasheet
PQ025EH02ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 2.5V
Output Current 2A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 2.5V
Mounting SMD (SMT)
Case / Package TO-263
Win Source Part Number 110685-PQ025EH02ZPH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ025EH02ZPH CAD Model

Description

Sharp Microelectronics' electronic component with Win Source Part Number 110685-PQ025EH02ZPH is an obsolete (EOL) product that falls under the category of integrated circuits.

  • Product: PQ025EH02ZPH
  • Topology: Positive fixed regulator topology product with one regulator
  • Application: Suitable for various electronic applications that require high-quality electronic components, but it has limited availability due to its EOL status.
