Same model may have multiple batches, images only for reference.

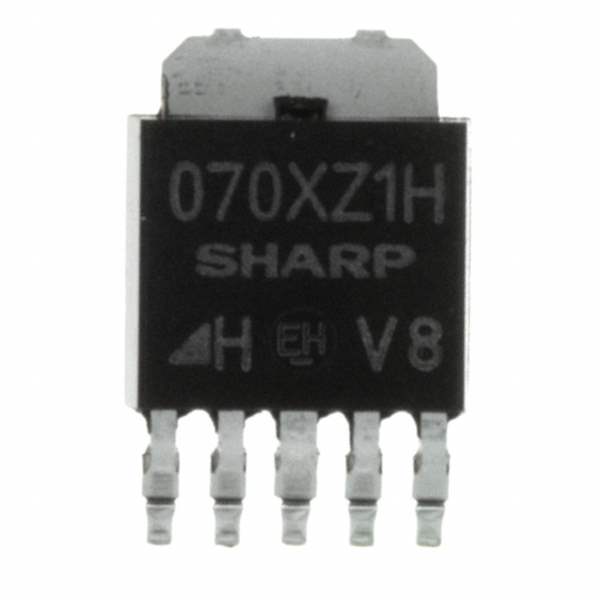

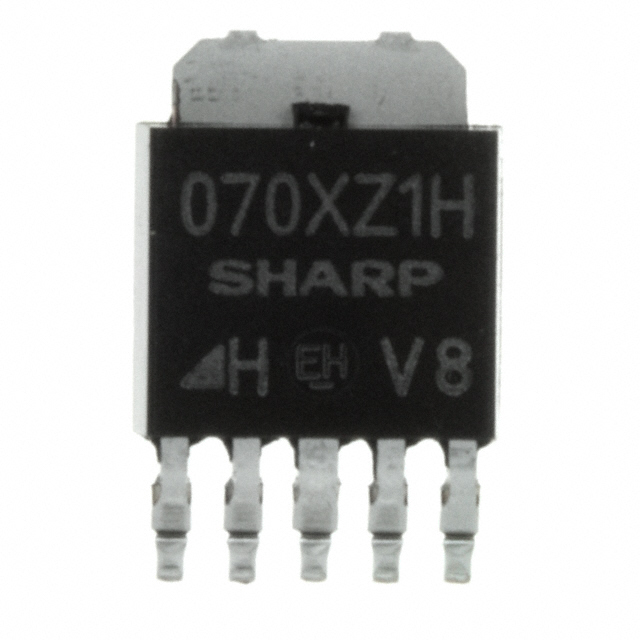

PQ070XZ1HZPH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ070XZ1HZPH

Part No PQ070XZ1HZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1.5A SC63
Datasheet
PQ070XZ1HZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 7V
Dropout Voltage-Max 1V @ 1.25A
Output Current 1.5A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 7 V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 105335-PQ070XZ1HZPH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ070XZ1HZPH CAD Model

Description

The Sharp Microelectronics PQ070XZ1HZPH is an integrated circuit with a positive adjustable regulator topology.

  • Maximum Input Voltage: 10V
  • Nominal Output Voltage: 1.5V
  • Dropout Voltage: maximum 1V @ 1.25A
  • Operating Supply Current: 2mA
  • Supply and Demand Status: balanced
