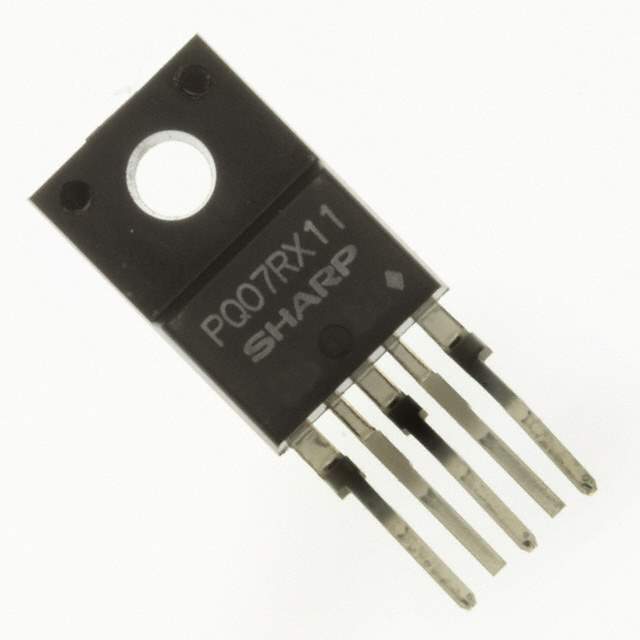

PQ07RX11 Real Image
Same model may have multiple batches, images only for reference.

PQ07RX11

Part No PQ07RX11
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1A TO220-4
Datasheet
PQ07RX11 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 7V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 7mA
PSRR 60dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 7 V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 061996-PQ07RX11
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ07RX11 CAD Model

Description

The Sharp Microelectronics PQ07RX11 is a positive adjustable regulator with a TO-220-4 case/package.

  • Type: integrated circuit
  • Number of Regulators: one
  • Output Type: adjustable
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Operating Temperature: 0°C to 125°C
  • Maximum Input Voltage: 10V
  • Nominal Output Voltage: 1.5V
  • Dropout Voltage-Max: 0.5V @ 500mA
  • Operating Supply Current: 7mA
  • Control Protection Features: over current and over temperature
