PQ09RD08 Sharp Microelectronics
Same model may have multiple batches, images only for reference.

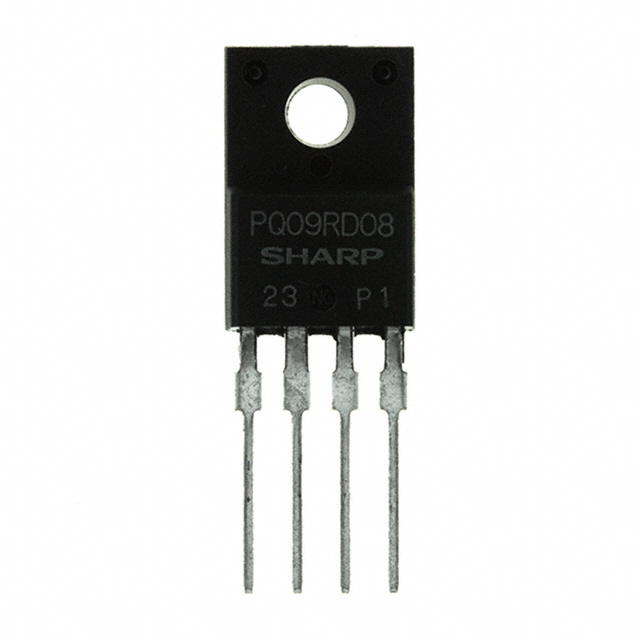

PQ09RD08

Part No PQ09RD08
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 9V 0.8A TO220-4
Datasheet
PQ09RD08 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 9V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 800mA
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 9V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 061999-PQ09RD08
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PQ09RD08 CAD Model

Description

The Sharp Microelectronics PQ09RD08 is a positive fixed regulator with a maximum input voltage of 20V and a nominal output voltage of 9V.

  • Status: Obsolete (EOL)
  • Operating Temperature: -20°C to 80°C
  • Protection Features: Over current and over temperature
