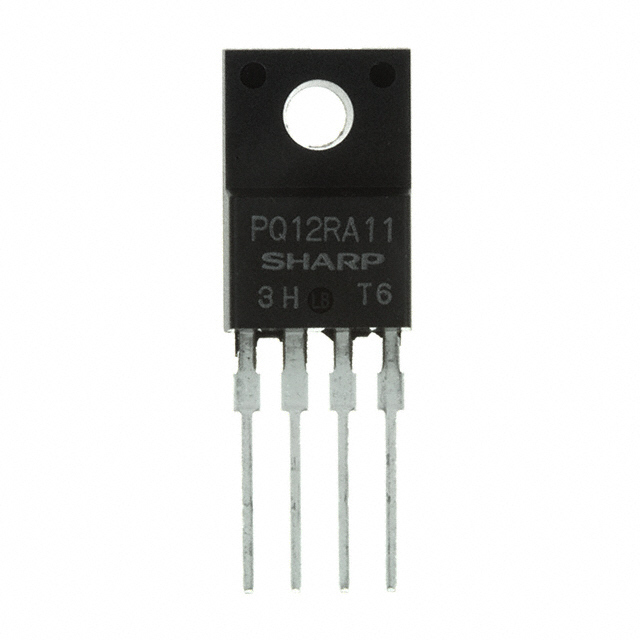

PQ12RA11J00H Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ12RA11J00H

Part No PQ12RA11J00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 12V 1A TO220-4 / LDO Regulator Pos 12V 1A 4-Pin(4+Tab) TO-220F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 35V
Output Voltage 12V
Output Current 1A
Operating Supply Current 8mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature Range -20°C ~ 80°C
Mounting Style Through Hole
Package TO-220-4
Manufacturer Package TO-220-4
Win Source Part Number 792463-PQ12RA11J00H
Popularity Medium
Supply and Demand Status Limited
Family Name PQ12RA11
Introduction Date August 07, 1997
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PQ12RA11J00H CAD Model

Description

The Sharp Microelectronics' PQ12RA11J00H voltage regulator, manufactured by Sharp Microelectronics, has the following specifications:

  • Output Configuration: Positive
  • Output Voltage: 12V
  • Output Current: 1A
  • Maximum Voltage Input: 35V
  • Package: TO-220-4
  • Low Operating Supply Current: 8mA
  • PSRR: 55dB (120Hz)
  • Protection: Over Current, Over Temperature
  • Supply and Demand Status: Limited
