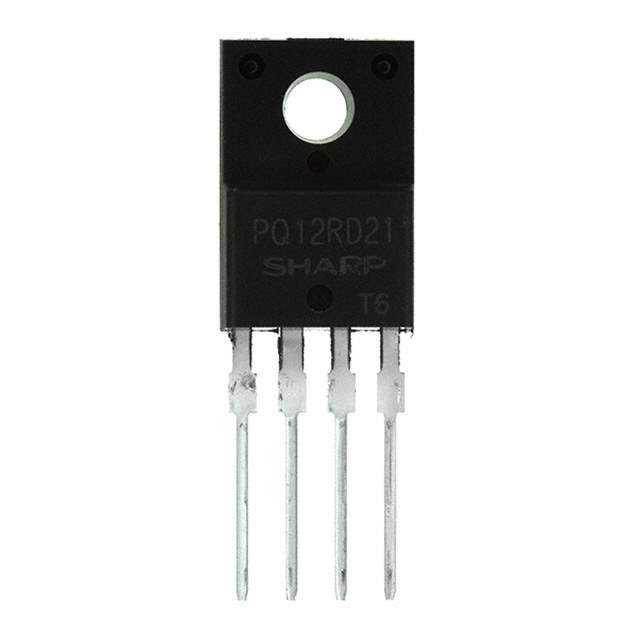

PQ12RD21J00H Real Image
Same model may have multiple batches, images only for reference.

PQ12RD21J00H

Part No PQ12RD21J00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 12V 2A TO220-4
Datasheet
PQ12RD21J00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 12V
Dropout Voltage-Max 0.5V @ 2A
Output Current 2A
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 12V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 117599-PQ12RD21J00H
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PQ12RD21J00H CAD Model

Description

The Sharp Microelectronics PQ12RD21J00H is a positive fixed regulator manufactured by.

  • Description: This integrated circuit is designed to provide an output current of 2A with a fixed output voltage of 12V.
  • Package: TO-220-4
  • Mounting: Through the hole
  • Operating Temperature Range: -20°C to 80°C
  • Status: Obsolete (EOL)
  • Maximum Input Voltage: 20V
  • Nominal Output Voltage: 12V
  • Protection Features: Over current and over temperature
  • Quantity per Package: 50
