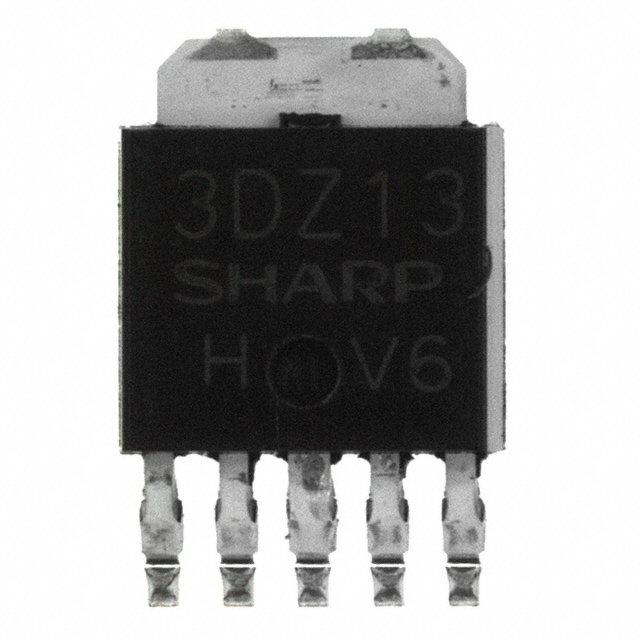

PQ3DZ13UJ00H

Part No PQ3DZ13UJ00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 1A SC63
Datasheet
PQ3DZ13UJ00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 10mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 105863-PQ3DZ13UJ00H
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ3DZ13UJ00H CAD Model

Description

The PQ3DZ13UJ00H is a positive fixed voltage regulator that is manufactured by Sharp Microelectronics.

  • Maximum Input Voltage: It has a maximum input voltage of 24V.
  • Nominal Output Voltage: A nominal output voltage of 3.3V.
  • Function: Designed for use in applications that require a fixed output voltage.
  • Manufacturer's Homepage: sharp-world.com/.
  • Package: Packaged in an SC-63 case.
  • Protection Features: Over current and over temperature protection features.
