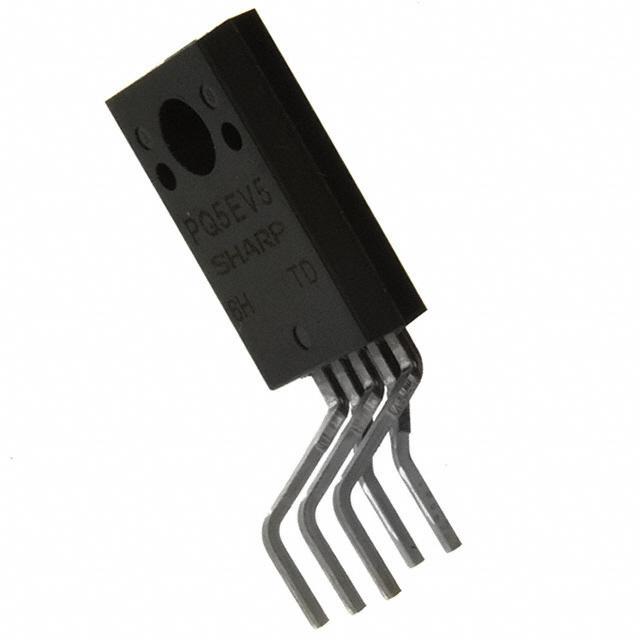

PQ5EV5J0000H Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ5EV5J0000H

Part No PQ5EV5J0000H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 5A TO220-5 / LDO Regulator Pos 1.5V to 5V 5A 5-Pin(5+Tab) TO-220 Sleeve
Datasheet
PQ5EV5J0000H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 7V
Output Voltage 1.5V
Output Voltage MAX 5V
Voltage Dropout (Maximum) 0.5V @ 5A
Output Current 5A
PSRR 70dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature Range -20°C ~ 80°C
Mounting Style Through Hole
Package TO-220-5 Formed Leads
Manufacturer Package TO-220-5
Win Source Part Number 792465-PQ5EV5J0000H
Popularity Medium
Supply and Demand Status Limited
Family Name PQ5EV5
Introduction Date August 02, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PQ5EV5J0000H CAD Model

Description

The Sharp Microelectronics PQ5EV5J0000H voltage regulator, manufactured by Sharp Microelectronics, has the following specifications:

  • Output Type: Adjustable
  • Output Configuration: Positive
  • Output Voltage (Max): 5V
  • Output Current: 5A
  • Enable Control: Yes
  • Protection: Over Current, Over Temperature
  • Voltage Input Maximum: 7V
  • Voltage Dropout (Maximum): 0.5V @ 5A
  • Package: TO-220-5 formed leads case
  • Supply and Demand Status: Limited
