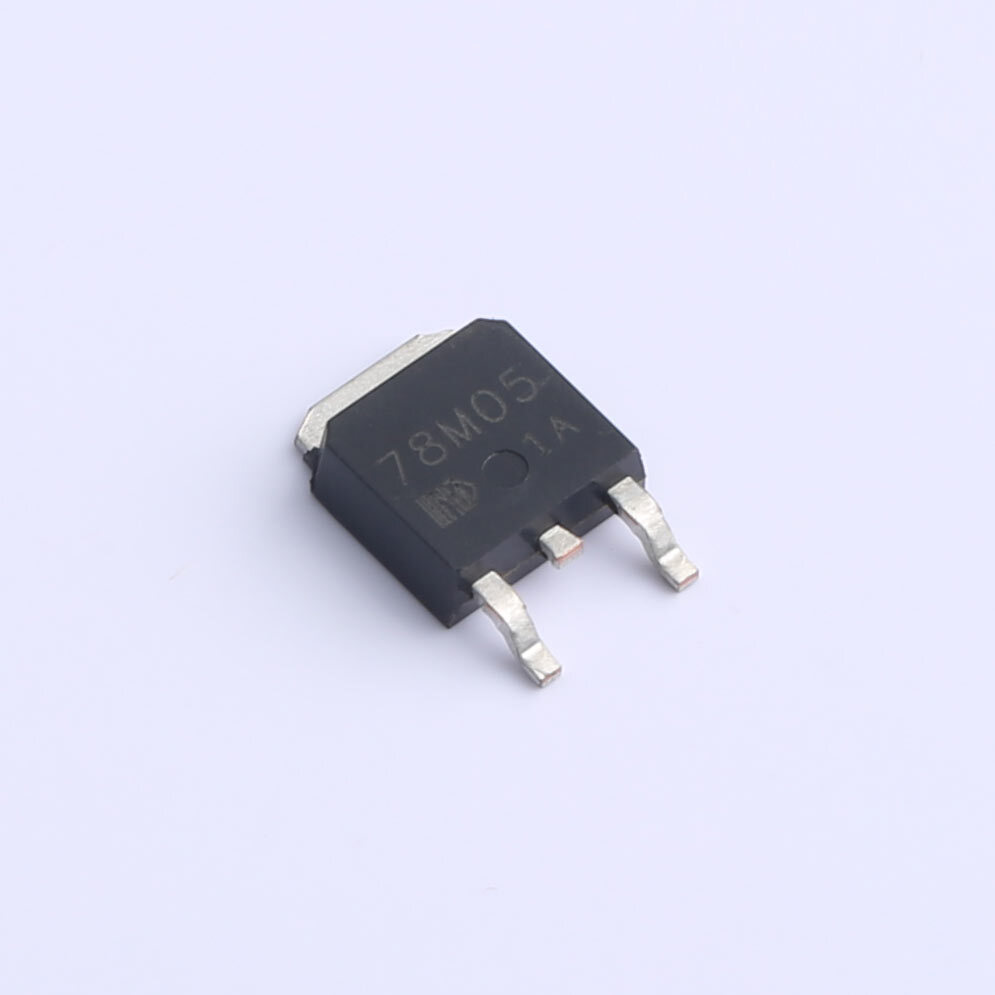

Same model may have multiple batches, images only for reference.
78M05 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

78M05

Part No 78M05
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog PMIC - Voltage Regulators - Linear
Description 80dB@(120Hz) 1A Fixed 5V Positive electrode 30V TO-252-2
Datasheet
78M05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1330121-78M05
Package Tape & Reel (TR)
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 30V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 2V @ 350mA
Current - Output 1A
Current - Quiescent (Iq) 6mA
PSRR 80dB (120Hz)
Protection Features Over Temperature, Short Circuit
Operating Temperature -40°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252
Package Tape & Reel (TR);Cut Tape (CT)
Voltage - Input (Max) 35V
Voltage Dropout (Max) 2V @ 500mA
Operating Temperature -20°C ~ 85°C
Supplier Device Package TO-252 (DPAK)
Ultra Librarian 3D Model Ultra Librarian 78M05 CAD Model
