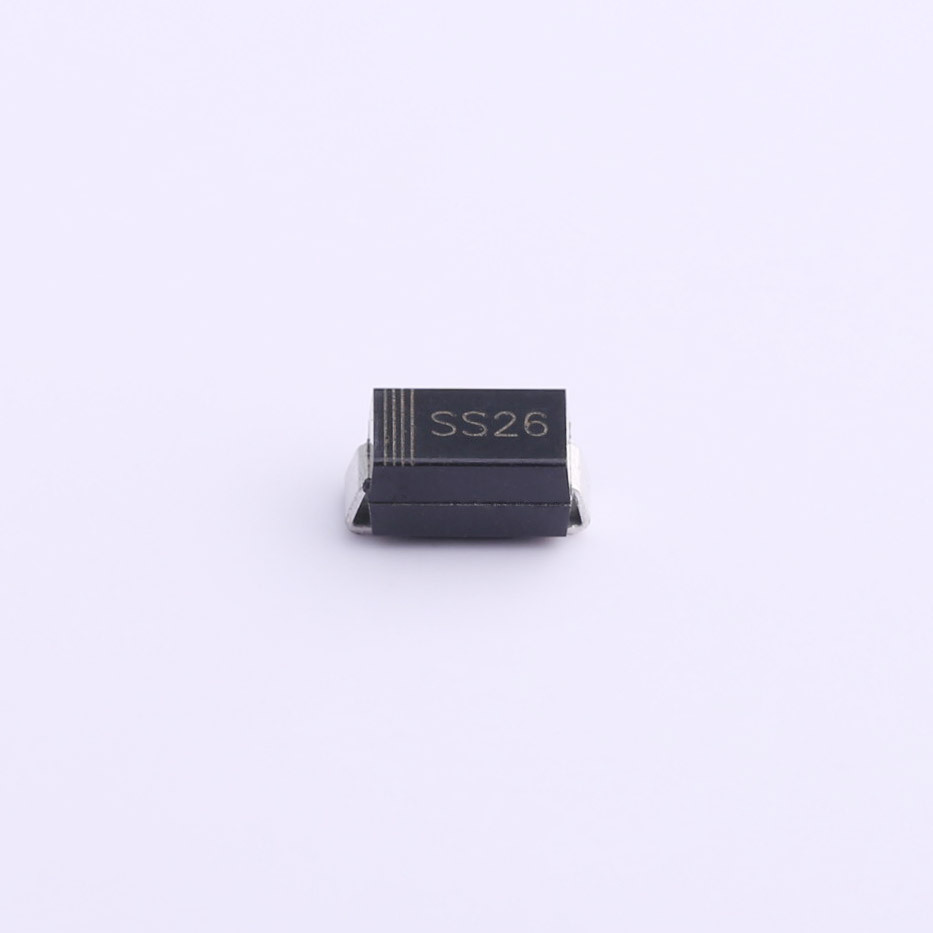

Same model may have multiple batches, images only for reference.

SS26

Name: SS26
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329840
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SS26
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	Schottky Diodes
Description	60V 700mV@2A 2A SMA(DO-214AC)
Datasheet	SS26 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329840-SS26
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	700mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	400µA @ 60V
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Operating Temperature - Junction	-55°C ~ 150°C
Package	Tape & Reel (TR)
Current - Reverse Leakage @ Vr	500µA @ 60V
Capacitance @ Vr, F	80pF @ 4V, 1MHz
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA
Product Status	Obsolete
Operating Temperature - Junction	-65°C ~ 125°C
Package	Cut Tape (CT)
Current - Reverse Leakage @ Vr	100µA @ 60V
Capacitance @ Vr, F	130pF @ 4V, 1MHz
Supplier Device Package	DO-214AC (SMA)
Operating Temperature - Junction	-65°C ~ 150°C
Ultra Librarian 3D Model	Ultra Librarian SS26 CAD Model
