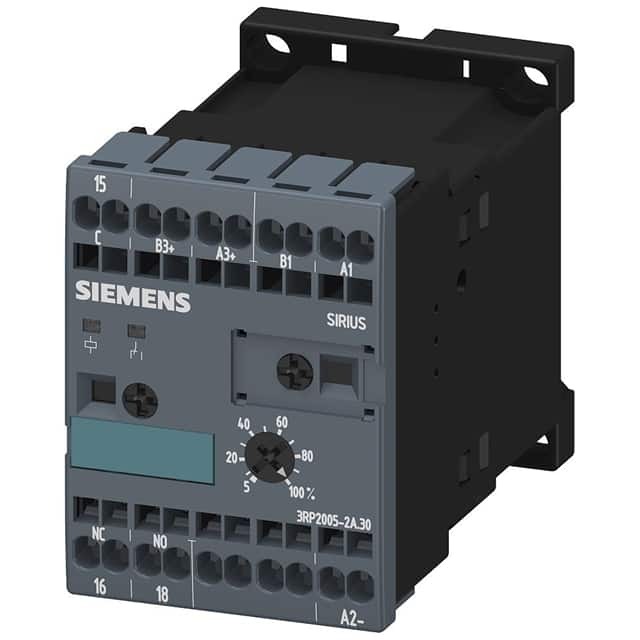

3RP2005-2AP30 Siemens
Same model may have multiple batches, images only for reference.

3RP2005-2AP30

Part No 3RP2005-2AP30
Manufacturer Siemens
Catalog Time Delay Relays
Description RELAY TIME DELAY
Datasheet
3RP2005-2AP30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls - Time Delay Relays
Mfr Siemens
Series SIRIUS
Package Box
Product Status Active
Mounting Type Chassis Mount, DIN Rail
Relay Type Mechanical Relay
Function Programmable (Multi-Function)
Circuit SPDT (1 Form C)
Delay Time 0.05 Sec ~ 100 Sec
Contact Rating @ Voltage 3A @ 250VAC
Voltage - Supply 200 ~ 240VAC, 24VAC/DC
Termination Style Spring Terminal
Timing Adjustment Method Screwdriver Slot
Timing Initiate Method Input Voltage
Base Product Number 3RP2005
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
Win Source Part Number 1036336-3RP2005-2AP30
Ultra Librarian 3D Model Ultra Librarian 3RP2005-2AP30 CAD Model

Description

The Siemens SIRIUS Time Delay Relay is a programmable (multi-function) relay designed for industrial automation and controls.

  • Circuit: SPDT (1 Form C)
  • Contact Rating: 3A @ 250VAC
  • Delay Time: 0.05 seconds to 100 seconds
  • Timing Adjustment: screwdriver slot
  • Timing Initiate: input voltage
  • Voltage Supply: 200-240VAC or 24VAC/DC
  • Mounting: chassis or DIN rail
  • Termination: spring terminal
