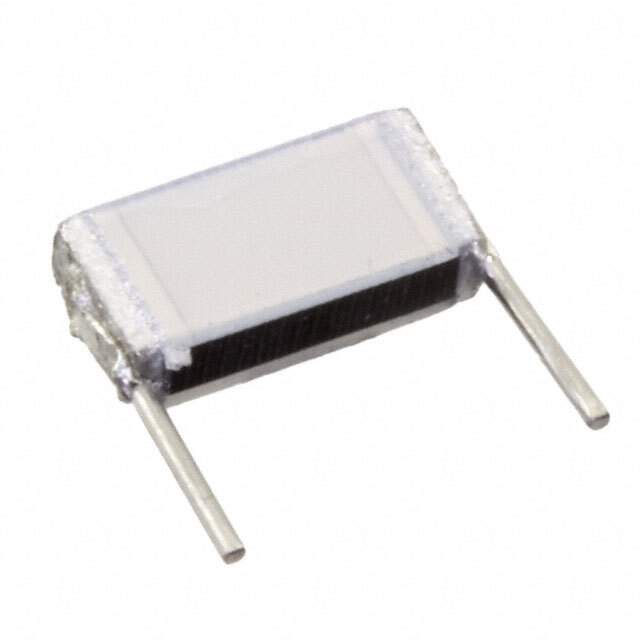

The B32560J6103J is a metallized polypropylene film capacitor manufactured by Siemens (now typically branded under EPCOS, a TDK Group Company). These capacitors are designed for a wide range of applications where high stability, reliability, and pulse handling capability are required. They are commonly used in power electronics, lighting, and industrial equipment.

Applications:

• Power factor correction (PFC)
• Snubber circuits
• AC filtering
• DC link circuits
• Lighting ballast

Features:

• Metallized polypropylene film dielectric
• Self-healing properties
• High pulse strength
• Low equivalent series resistance (ESR)
• High insulation resistance
• Flame-retardant epoxy resin coating

Benefits:

• Reliable Performance: The self-healing properties ensure long-term reliability and prevent catastrophic failures.
• High Pulse Handling: Suitable for applications with high voltage and current pulses.
• Low Losses: Low ESR minimizes power dissipation and improves efficiency.
• Stable Capacitance: Provides stable capacitance over a wide range of temperatures and frequencies.
• Safety: The flame-retardant coating enhances safety in case of overload or failure.

Technical Specifications:

The B32560J6103J typically has a capacitance of 0.01µF (10nF) and a voltage rating of 630V DC. The tolerance is typically ±5% (J). The operating temperature range usually spans from -55°C to +105°C. These capacitors are designed for through-hole mounting. Refer to the manufacturer's datasheet (EPCOS/TDK) for detailed electrical characteristics, dimensions, and performance curves.

The Siemens (EPCOS/TDK) B32560J6103J metallized polypropylene film capacitor provides a robust and reliable solution for various power electronics and filtering applications. Its high pulse strength, low ESR, and self-healing properties make it an excellent choice for demanding environments where stability and longevity are critical.
