Same model may have multiple batches, images only for reference.

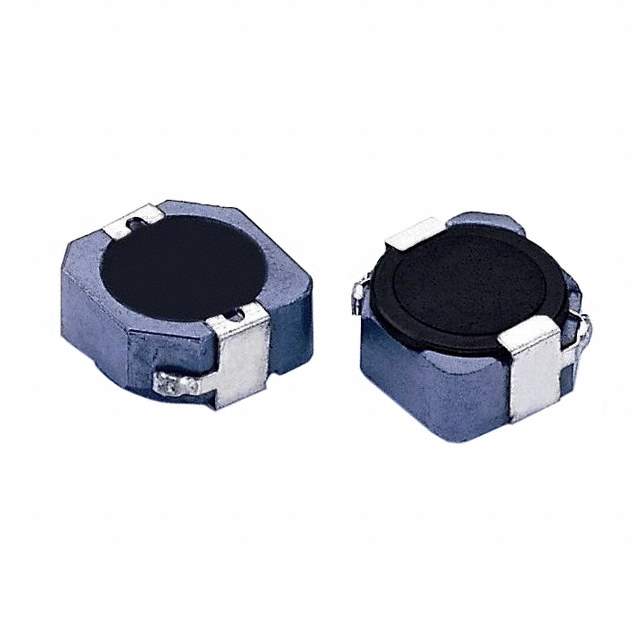

SCRH105RY-8R2 Real Image
Same model may have multiple batches, images only for reference.

SCRH105RY-8R2

Part No SCRH105RY-8R2
Manufacturer Signal Transformer
Catalog Fixed Inductors
Description FIXED IND 8.2UH 5.5A 20 MOHM SMD / 8.2 µH Shielded Inductor 5.5 A 20mOhm Max Nonstandard
Datasheet
SCRH105RY-8R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Signal Transformer
Series SCRH105RY
Package Tape & Reel (TR)
Inductance 8.2 µH
Tolerance ±30%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 20mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max) 0.201" (5.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 500
Win Source Part Number 1106898-SCRH105RY-8R2
Ultra Librarian 3D Model Ultra Librarian SCRH105RY-8R2 CAD Model

Description

The Signal Transformer SCRH105RY is a fixed inductor with a shielding feature.

  • Inductance: 8.2 µH
  • Tolerance: ±30%
  • Current Rating: 5.5A
  • DC Resistance: 20mOhm Max
  • Mounting: SMD (SMT)
  • Package/Case: Non-standard
  • Frequency Test: 100 kHz
  • Operating Temperature: -40°C to 125°C
