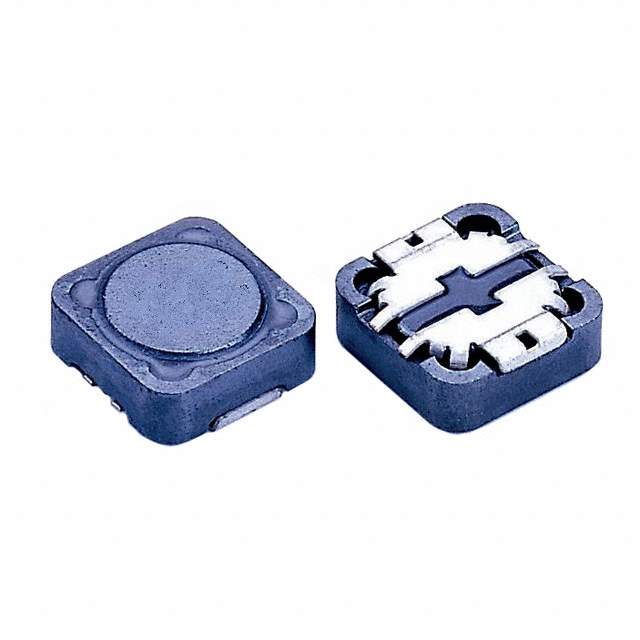

Same model may have multiple batches, images only for reference.

SCRH124-270

Name: SCRH124-270
Brand: Signal Transformer
SKU: 1200577
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SCRH124-270
Manufacturer	Signal Transformer
Catalog	Fixed Inductors
Description	FIXED IND 27UH 2.7A 80 MOHM SMD / 27 µH Shielded Inductor 2.7 A 80mOhm Max Nonstandard
Datasheet	SCRH124-270 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Signal Transformer
Series	SCRH124
Package	Tape & Reel (TR)
Inductance	27 µH
Tolerance	±20%
Current Rating (Amps)	2.7 A
Current - Saturation (Isat)	2.8A
Shielding	Shielded
DC Resistance (DCR)	80mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.177" (4.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	500
Win Source Part Number	1200577-SCRH124-270
Ultra Librarian 3D Model	Ultra Librarian SCRH124-270 CAD Model

Alternative Products

Description

The SCRH124 series inductor from Signal Transformer is a shielded fixed inductor with a tape and reel package.

Inductance: 27 µH
Tolerance: ±20%
Maximum seated height: 0.177" (4.50mm)
Standard package: 500
DC resistance (DCR): 80mOhm Max
Current rating: 2.7 A
Operating temperature range: -40°C to 125°C
Mounting: surface using SMD (SMT) technology
Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
ECCN: EAR99 compliant
Current saturation (Isat): 2.8A
