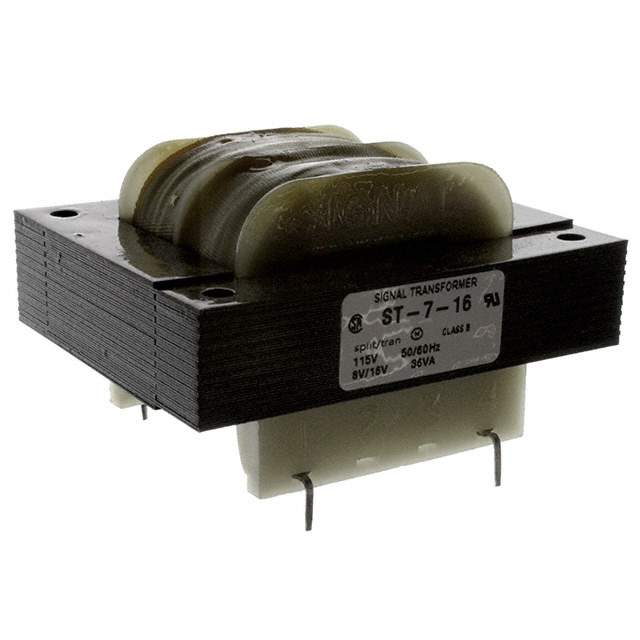

ST-7-48 Real Image
Same model may have multiple batches, images only for reference.

ST-7-48

Part No ST-7-48
Manufacturer Signal Transformer
Catalog Power Transformers
Description PWR XFMR LAMINATED 36VA TH  /
Datasheet
ST-7-48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Signal Transformer
Series ST
Package Bulk
Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) Parallel 24V, Series 48V
Current - Output (Max) Parallel 1.5A, Series 750mA
Primary Winding(s) Single
Secondary Winding(s) Dual
Center Tap No
Power - Max 36VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 66.70mm L x 55.50mm W
Height - Seated (Max) 40.40mm
Voltage - Isolation 2500Vrms
Weight 1.1 lbs (499 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names -2163-ST-7-48
Standard Package 20
Win Source Part Number 1167791-ST-7-48
Ultra Librarian 3D Model Ultra Librarian ST-7-48 CAD Model

Description

This laminated core power transformer is a part of the ST series with a type of laminated core and a PC pin termination style.

  • Series: ST
  • Type: Laminated Core
  • Termination Style: PC Pin
  • Height Seated: 40.40mm
  • Standard Package: 20
  • Maximum Power: 36VA
  • Weight: 1.1 lbs
  • Voltage Isolation: 2500Vrms
  • Primary Voltage: 115V
  • Current Output: Parallel 1.5A, Series 750mA
  • Voltage Secondary: Parallel 24V, Series 48V
  • Primary Winding: Single
  • Secondary Winding: Dual
  • Mounting Type: Through-Hole
  • Dimensions: 66.70mm L x 55.50mm W
  • REACH: Unaffected
  • HTSUS: 8504.31.4035
  • Manufacturer: Signal Transformer
