Same model may have multiple batches, images only for reference.

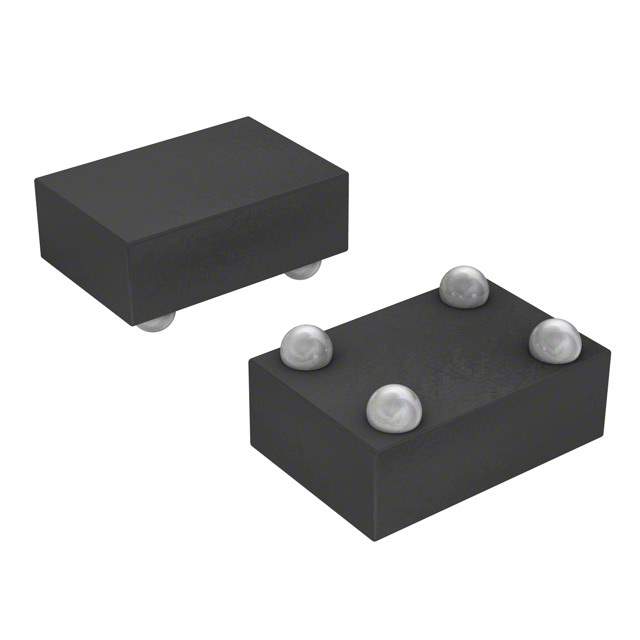

L2985B18-H4T1 Real Image
Same model may have multiple batches, images only for reference.

L2985B18-H4T1

Part No L2985B18-H4T1
Manufacturer SII Semiconductor Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.8V 0.15A WLP4B
Datasheet
L2985B18-H4T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer SII Semiconductor Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 6.5V
Nominal Output Voltage (Min/Fixed) 1.8V
Dropout Voltage-Max 0.47V @ 100mA
Output Current 150mA
Operating Supply Current 90μA
PSRR 80dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 1.8V
Voltage - Dropout (Typical) 0.28V @ 100mA
Mounting SMD (SMT)
Case / Package WLP-4B
Win Source Part Number 070566-L2985B18-H4T1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L2985B18-H4T1 CAD Model

Description

The SII Semiconductor Corporation regulator topology is a positive fixed voltage dropout with an output type of Fixed.

  • Regulator Topology: Positive Fixed Voltage Dropout
  • Output Type: Fixed
  • Output Current: 150mA
  • Voltage: 1.8V
  • Status: Obsolete (EOL)
  • Popularity Rating: Medium
